main product photo

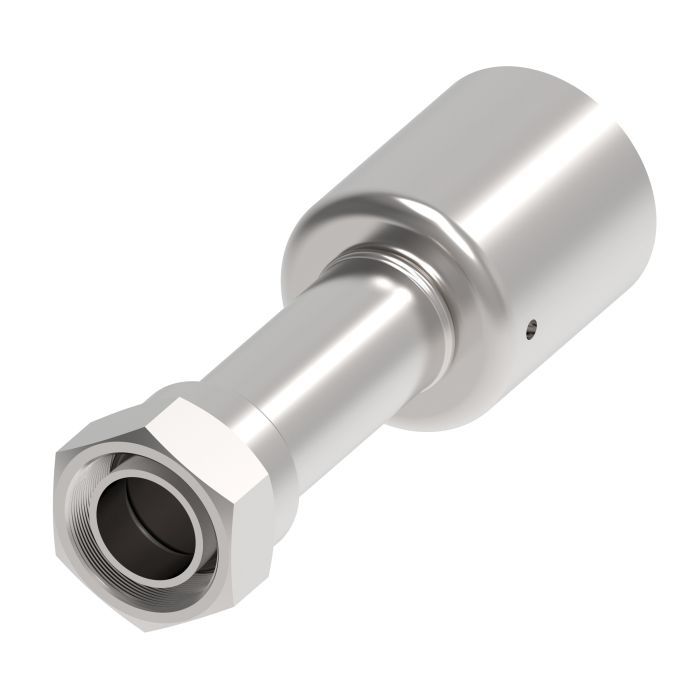

FEMALE TUBE-O, STRAIGHT

Ask A Question

Description & Features

Designed for straight-run hydraulic hose assemblies, this carbon steel Female Tube-O, Straight fitting features a bumped tube O-ring female swivel end on one side and a -8 dash size hose connection on the other. The SAE female end measures 0.75 inches, making it suited for mid-range hydraulic line connections where a reliable, leak-resistant seal is required.

Built under the Aeroquip brand, the fitting is finished with Dura-Kote plating, which provides strong resistance to corrosion in demanding service environments. The swivel design simplifies installation by allowing rotational adjustment during assembly, reducing stress on connected hose ends. Engineered as part of a system-level approach to hose assembly longevity, this fitting is intended to support consistent performance and reduced downtime across hydraulic circuits.

SKU: 75708E-Z49

Supplier Part Number (MPN): 75708E-Z49

Specifications

Brand
Danfoss
Compatible Hose ID
0.406 in
Compatible Tube OD
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg Swivel
Construction Style
Crimp
Cut-Off Factor
1-3/4 in
Dimensions
3.06 in L
End Gender 1
Female
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H757 Series Hoses
Hex Size
7/8 in
Hose Dash Size
08
Material
Steel
Material Construction
Carbon Steel
Series
757 E Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Tube Outside Diameter 1
1/2 in

Product Questions & Answers (1)

Question by: Randy T on May 2, 2025, 10:39 AM
What size is the female end on this fitting?
Answer by: Customer Support on May 3, 2025, 11:24 AM
The SAE female end measures 0.75 inches.
