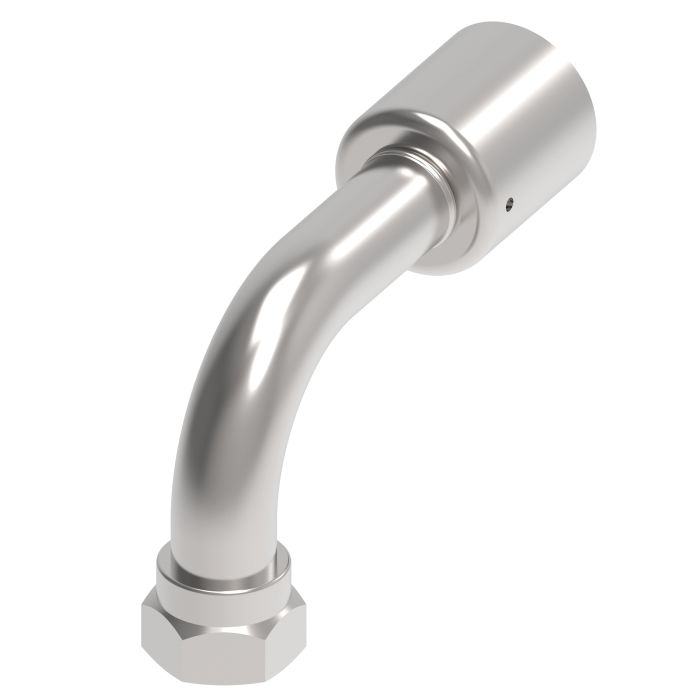

Designed for refrigerant system applications involving R134a and R12, this carbon steel fitting is well-suited for heavy-duty truck, industrial, and automotive use. The Refrig Female Tube-O, 90 Deg El is a crimp-style hose fitting with a bumped tube O-ring female swivel connection, configured at a 90-degree elbow to accommodate directional routing in tight installation environments.
Manufactured by Danfoss Power Solutions under the Weatherhead 757 E Series, the fitting features Dura-Kote plating for corrosion resistance and is engineered to extend hose assembly service life. It carries a -8 hose dash size with a 0.75-inch SAE end and a 1.5-inch drop dimension, rated for use down to -40 degrees minimum working temperature. The carbon steel construction and system-engineered design support consistent performance and reduced downtime in demanding service conditions.
SKU: 75708E-Z89
Supplier Part Number (MPN): 75708E-Z89
|
Alternate Part Numbers
MINO-00015X08037
|
Application
Used with R134a and R12
applications. Ideal for heavy duty truck use as well as industrial and automotive applications. |
Class
WEB-ITEM
|
Drop Dimension
1.50
|
Brand
Danfoss (IGS)
|
Brand
Danfoss Power Solutions
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Size 1
0.75
|
End Type 1
SAE
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-8
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Minimum Working Temperature
-40
|
Product Material
Carbon Steel
|
Product Width
0.88
|
Supplier Part Number
75708E-Z89
|
Product Weight
0.99 lbs
|
