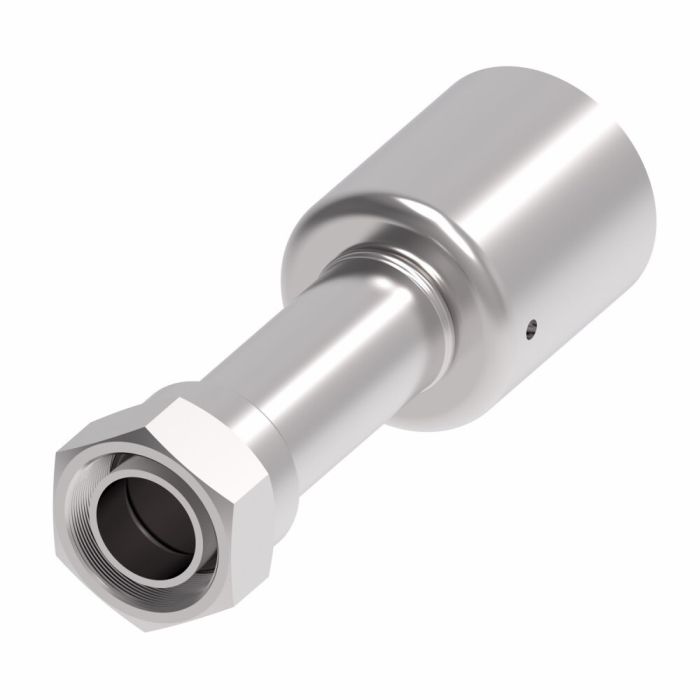

Weatherhead Fitting REFRIG FemaleTube-O

Ask A Question

Description & Features

This Weatherhead fitting is a refrigeration female tube O-ring fitting suitable for R134a and R12 applications. It is ideally suited for heavy-duty truck use, as well as industrial and automotive applications.

Manufactured from carbon steel, this Weatherhead fitting features Dura-Kote plating for superior corrosion resistance and is system engineered to extend hose assembly life. The innovative design is made to deliver consistent performance and maximum uptime.

SKU: 75710E-Z51

Supplier Part Number (MPN): 75710E-Z51

Specifications

Brand
Weatherhead® by Danfoss
a Dimensions
3.31 in
Compatible Hose ID
0.63 in
Compatible Tube OD
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female ORB, Hose
Connection Type 1
Hose
Connection Type 2
Female ORB
Construction Style
Crimp
Cut-Off Factor
1.88 in
Dimensions
3.09 in L
End Gender 1
Female
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H757 Series Hoses
Hex Size
1.06 in
Hose Dash Size
10
Material
Steel
Material Construction
Carbon Steel
Series
757 E Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF
Tube Outside Diameter 1
0.63 in

Product Questions & Answers (1)

Question by: Rhonda T on Mar 24, 2026, 9:17 PM
Will this fitting hold up okay on a refrigeration system in a semi-truck? Seems like those get beat up pretty good.
Answer by: Customer Support on Mar 26, 2026, 5:12 PM
It's definitely suitable for heavy-duty truck use, along with industrial and automotive applications. The Dura-Kote plating on the carbon steel is made to give it superior corrosion resistance, which should help it last.
