main product photo

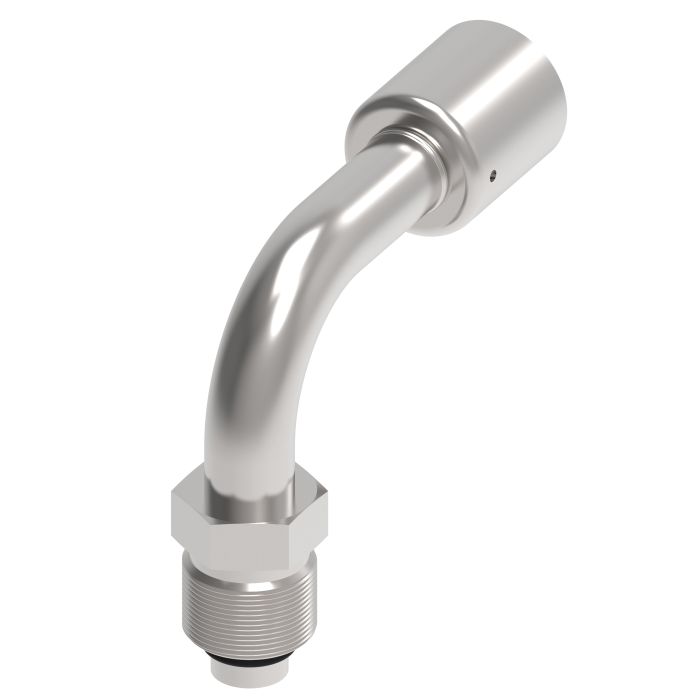

Male Tube-O, 90 Deg EL

Ask A Question

Description & Features

Designed for compatibility with R134a and R12 refrigerant systems, this carbon steel Male Tube-O, 90 Deg EL is built for heavy-duty truck, industrial, and automotive applications. The 90-degree elbow configuration suits installations where straight connections are not practical, with an inverted end type on one side and a line/hose/tube connection on the other. End size is 0.875 inch at a -10 hose dash size.

Part of the Danfoss Power Solutions 757 E Series crimp fitting line, this fitting assembly features Dura-Kote plating for corrosion resistance and is system-engineered to support extended hose assembly service life. The design supports consistent performance and reduced downtime in demanding fluid conveyance environments.

SKU: 75710E-Z70

Supplier Part Number (MPN): 75710E-Z70

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.15 in
Compatible Hose ID
0.63 in
Compatible Tube OD
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose, Male ORFS
Connection Type 1
Hose
Connection Type 2
Male SAE 45 deg ORFS
Construction Style
Crimp
Cut-Off Factor
2-7/8 in
Drop Dimensions
2 in
End Gender 1
Male
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
H757 Series Hoses
Hex Size
7/8 in
Hose Dash Size
10
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
757 E Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Tube Outside Diameter 1
0.63 in

Product Questions & Answers (1)

Question by: Clint O on Oct 27, 2025, 3:28 PM
Will this fitting work with both R134a and R12 systems?
Answer by: Customer Support on Oct 29, 2025, 6:24 AM
Yes, this fitting is designed for use with both R134a and R12 refrigerant systems.
