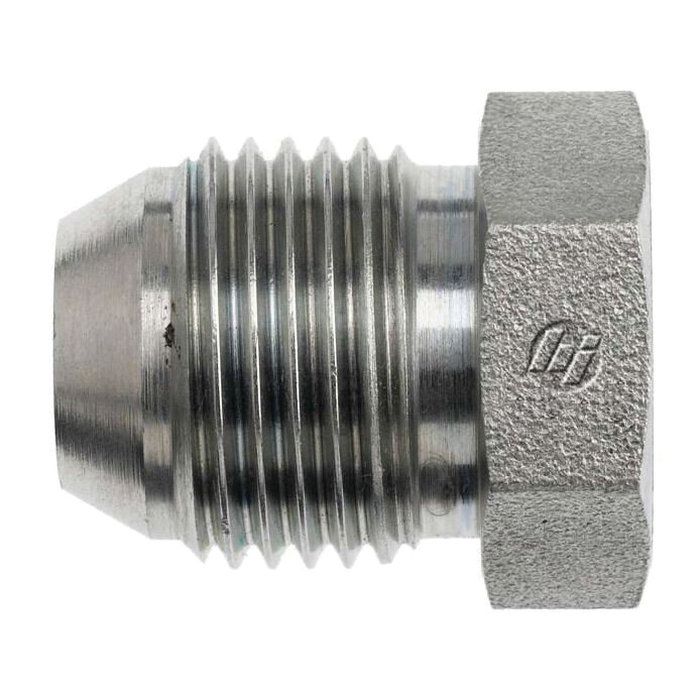

12MJIS PLUG (3/4-14 BSP THREAD/30 SEAT)

Description & Features

This plug features a 3/4-14 BSP thread and a 30-degree seat.

The 12MJIS PLUG provides a reliable solution for closing off ports in hydraulic systems.

SKU: 7588-P-12

Supplier Part Number (MPN): 7588-P-12

Brand BRENNAN	Connection Size 1 3/4 in	Connection Type Male JIS	Connection Type 1 Male JIS	Dimension Standards JIS B 0202	Dimensions 34 mm L	Finish Trivalent Zinc-Plated	Fitting Type Plug	Hex Size 0.67 in	Material Steel	Material Construction AISI 1045 Steel	Maximum Operating Pressure 4000 psi	Series 7588-P Series	Thread Size 1/4-19

Question by: Steve M on Nov 3, 2025, 8:05 AM

Will this plug work to seal up a 3/4 inch BSP port?

Answer by: Customer Support on Nov 4, 2025, 2:20 PM

Yes, this plug is made to fit a 3/4-14 BSP thread.
