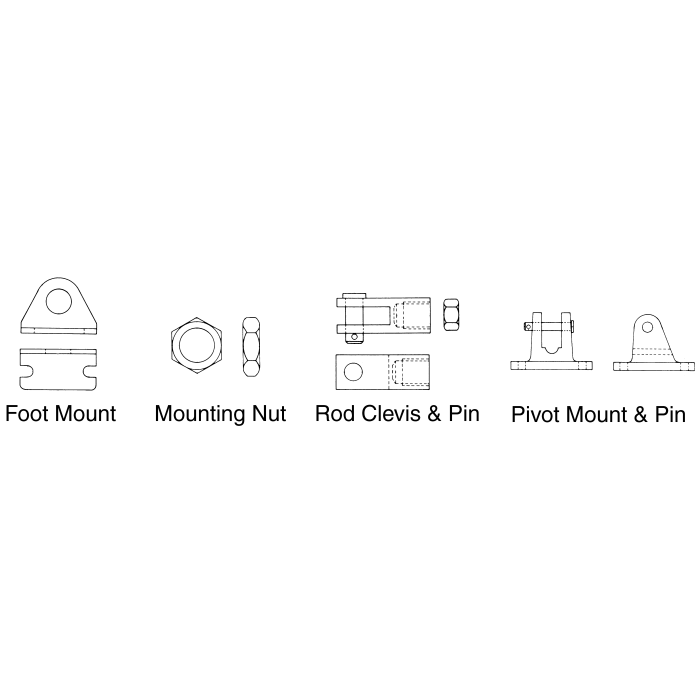

76 Series Rod Clevis & Pin for 1-1/8 Bore Cylinders

Description & Features

The 76 Series Rod Clevis & Pin for 1-1/8 Bore Cylinders is made by American Cylinder Co. and designed for use with 76 Series pneumatic cylinders.

This cylinder accessory features thick-walled hard coated aluminum body construction with Buna-N U-cup piston and rod seals. It also includes a ground and polished 303 stainless steel piston rod with wrench flats and aluminum alloy end caps.

This rod clevis and pin is rated to a maximum operating pressure of 250 PSI and a temperature range of -20°F to 200°F.

SKU: M44

Supplier Part Number (MPN): M44

Alternate Part Numbers: C1ZX58

Specifications

Finish Zinc-Plated	For Use With 76 Series Cylinder	Material Steel	Sg Maximum Operating Pressure 250 psi	Specifications 3/8-24 UNF Thread

Product Questions & Answers (2)

Question by: Hubert A on Oct 16, 2025, 3:33 PM

Hey, will this here clevis and pin work with my American Cylinder 76 series cylinder?

Answer by: Customer Support on Oct 18, 2025, 9:04 AM

Yes, this rod clevis and pin is specifically designed for use with American Cylinder Co.'s 76 Series pneumatic cylinders that have a 1-1/8 inch bore.

Question by: Neal B on Nov 15, 2025, 8:26 PM

got a 76 series cylinder with a 1-1/8 bore, is this the right rod clevis and pin to swap in?

Answer by: Customer Support on Nov 17, 2025, 3:23 PM

For 76 Series pneumatic cylinders in the 1-1/8 bore size, this M44 rod clevis and pin is the matching accessory.
