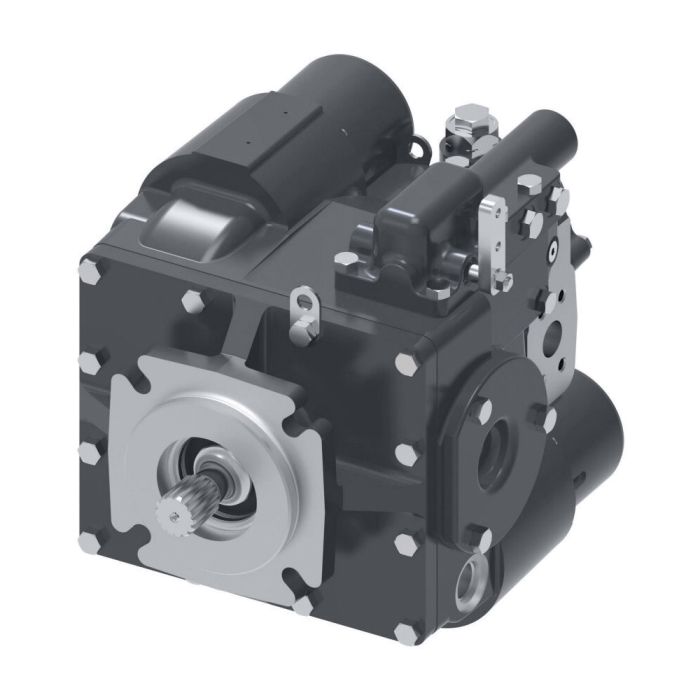

main product photo

ACA762013L0E00EJB005J7YF30K00000A

Ask A Question

Description & Features

Designed for heavy-duty applications, the ACA762013L0E00EJB005J7YF30K00000A hydraulic pump from Danfoss Power Solutions offers proven reliability across various sectors, including construction, agriculture, and oil and gas. As a variable displacement piston pump, it provides flexibility and efficiency, adjusting flow and pressure to meet specific needs. Engineered for demanding environments, it features multiple control options and is Pro-FX ready, ensuring seamless integration with advanced control systems.

This closed circuit pump is a part of the reputable Danfoss/Eaton Series 1, known for its robust performance in mobile applications such as trucks and buses. With a compact width of 12.18 inches, it fits well within confined spaces without compromising power or functionality. Whether you're looking to enhance your equipment's hydraulic efficiency or ensure smooth operation under challenging conditions, this pump is a reliable choice.

SKU: 7620-316

Supplier Part Number (MPN): 7620-316

Specifications

Brand
Danfoss
Control Supply Orifice
0.036 in Dia
Control Type
Electronic Proportional without Electronic Driver
Design Code
A
Design Type
Ball-Guide, Model 76
Dimensions
20.33 in L x 12.18 in W x 13.3 in H
Drive Shaft Type
13 Teeth Splined
Fluid Compatibility
AW Hydraulic Oil, Biodegradable Oil (Vegetable), Engine Oil, Motor Oil
Housing Color
Blue
Housing Material
Iron
Inlet Size
7/8-14
Inlet Type
SAE O-ring
Main Ports
(1) - Code 62 Per SAE J518 with Port A and B Gauge Ports
Maximum Operating Pressure
4500 psi
Mounting Type
Flanged
Outlet Size
7/8-14
Outlet Type
SAE O-ring
Press Override
Internal Pressure Override Externally Adjustable
Rotation Direction
Counter Clockwise (Left Hand)
Seal Material
FKM/HNBR
Segment Code
C
Series
ACA 1 Series
Shaft Pitch
16/32
Valve Plate
Standard, V-Groove

Product Questions & Answers (1)

Question by: Glen M on Apr 30, 2025, 8:14 AM
If I'm putting this in a piece of heavy equipment that runs all day long, can it handle that kind of continuous use?
Answer by: Customer Support on May 1, 2025, 5:47 PM
Application-wise, this Danfoss pump is designed for demanding environments like construction, agriculture, and oil and gas, so continuous use shouldn't be an issue.
