06MJ-14MM ISO 6149 STRAIGHT

Ask A Question

Description & Features

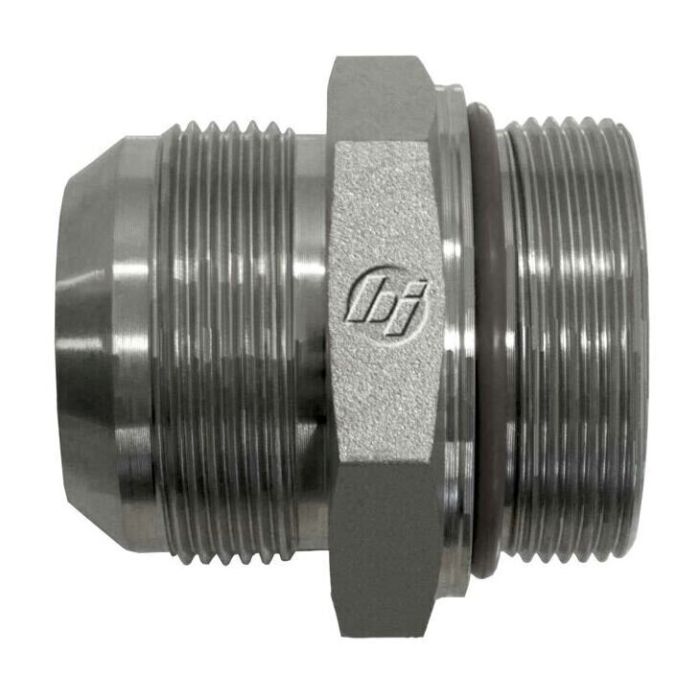

This straight steel fitting features a 9/16-18 Male JIC SAE 37 Degree Flare thread (B1) and a M14X1.5 Male Metric ISO 6149 O-Ring thread (B2). The 06MJ-14MM ISO 6149 STRAIGHT is part of the 7640-O-ISO 6149 series.

This fitting conforms to SAE J514 and ISO 6149 O-Ring Port thread specifications. It also features an NBR O-ring seal material.

SKU: 7640-06-14-O

Supplier Part Number (MPN): 7640-06-14-O

Specifications

Connection Size 1
3/8 in
Connection Size 2
14 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male 37 deg JIC Flare
Connection Type 2
Male Metric O-ring
Dimension Standards
SAE J514
Finish
Zinc Trivalent
Fitting Type
Adapter
Hex Size
3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
7640-O Series
Thread Size
9/16-18 x M14x1.5
Thread Specification B2
ISO 6149 O-ring Port

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Jimmy G on Mar 5, 2026, 11:36 AM
What kind of O-ring does this have?
Answer by: Customer Support on Mar 6, 2026, 5:22 PM
This fitting uses an NBR O-ring seal.
