12MJ-22MMOR ISO 6149 Straight

Description & Features

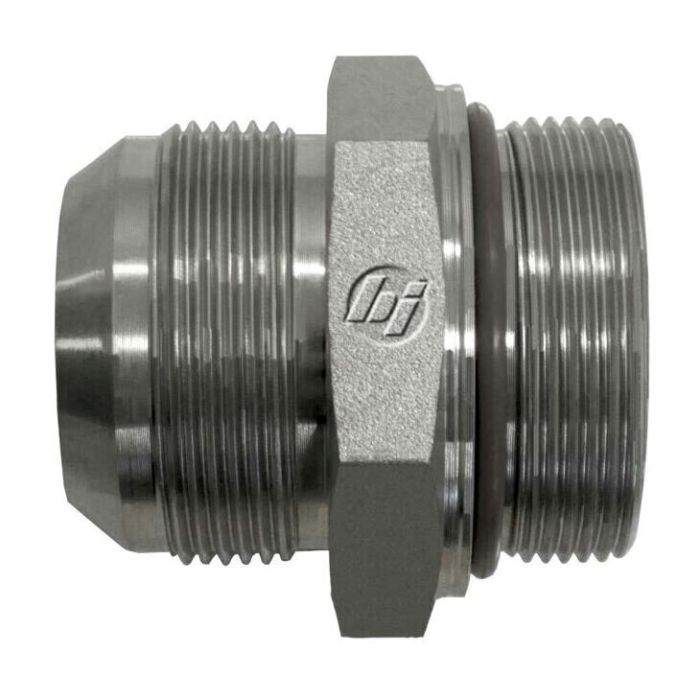

This straight steel fitting is a 12MJ-22MMOR ISO 6149 Straight, belonging to the 7640-O-ISO 6149 series from Brennan Industries.

It features a 1-1/16-12 Male JIC SAE 37 Degree Flare thread (B1) and a M22X1.5 Male Metric ISO 6149 O-Ring thread (B2). The O-ring seal is constructed from NBR. The thread drill sizes are 15.47 mm (B1) and 14.0 mm (B2). This fitting is suitable for use with hydraulic applications.

SKU: 7640-12-22-O

Supplier Part Number (MPN): 7640-12-22-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 7640-12-22-O	Product Weight 0.23 lbs

Product Questions & Answers (1)

Question by: Rod J on Oct 20, 2025, 6:32 PM

Will this fitting hold up to hydraulic pressures without leaking at the threads?

Answer by: Customer Support on Oct 22, 2025, 1:55 PM

This straight steel fitting is designed for hydraulic applications, so it should provide a reliable seal when properly installed according to ISO 6149 standards.
