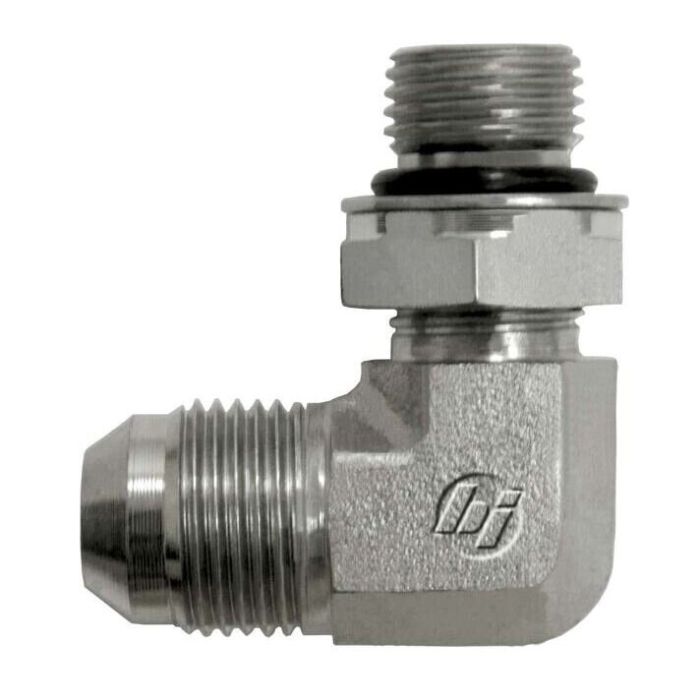

06MJ-14MMAORB 90 ELB ISO 6149

A forged steel 90-degree elbow designed for hydraulic systems requiring a transition between SAE JIC and ISO 6149 metric port connections. The 06MJ-14MMAORB 90 ELB ISO 6149 features a 9/16-18 Male JIC SAE 37-degree flare on one end and an M14x1.5 Male Metric Adjustable ISO 6149 O-ring port on the other, making it well suited for mixed-standard hydraulic assemblies.

Constructed from a steel forging, this fitting delivers the structural integrity expected in demanding hydraulic environments. The NBR O-ring seal material provides reliable sealing performance across a range of fluid types and operating temperatures common in industrial hydraulic circuits. With a hex dimension of 19.0 mm and a thread drill of 7.54 mm on both ends, the fitting is compact and consistent in its geometry. Manufactured by Brennan Industries and compliant with SAE J514 and ISO 6149 standards. California residents should note applicable Proposition 65 warnings.

SKU: 7650-06-14-NWO-FG

Supplier Part Number (MPN): 7650-06-14-NWO-FG

Alternate Part Numbers: 1046-2108
