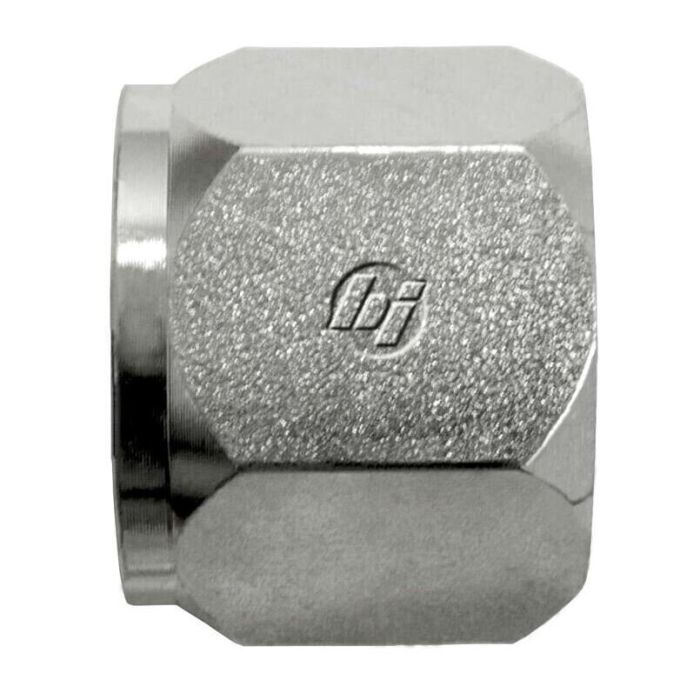

08FJIS CAP

Description & Features

Engineered for precision sealing, the 08FJIS Cap features a 1/2-14 BSP thread with a 30-degree flare design. Crafted from straight steel, this cap is an ideal choice for applications requiring robust and reliable closures. The female JIS 30-degree flare fitting ensures a secure fit, making it suitable for various industrial uses where dependable sealing is critical.

Manufactured by Brennan Industries, this component is part of the 7688-C series, recognized for its durable construction and compatibility with a range of hydraulic systems. The compact design, with a cubic inch space of 1.023, maximizes efficiency without compromising performance. Safety is a priority, as indicated by the PROP-65 warning for California residents.

SKU: 7688-C-08

Supplier Part Number (MPN): 7688-C-08

Specifications

Brand BRENNAN	Connection Size 1 1/2 in	Connection Type Female JIS	Connection Type 1 Female JIS	Cubic Inch Space L x W x H Dimensions 1.023 cu-in	Dimension Standards JIS B 0202	Dimensions 27.4 mm L	Finish Trivalent Zinc-Plated	Fitting Type Cap	Hex Size 1.06 in	Material Steel	Material Construction AISI 1045 Steel	Maximum Operating Pressure 5000 psi	Series 7688-C Series	Thread Size 1/2-14

Similar Products

Model Number	Connection Size 1	Finish	Thread Size	Hex Size
7688-C-04	1/4 in	Trivalent Zinc-Plated	1/4-19	3/4 in
7688-C-06	3/8 in	Trivalent Zinc-Plated	3/8-19	0.87 in
7688-C-10	5/8 in	Zinc Trivalent	5/8-14
7688-C-12	3/4 in	Trivalent Zinc-Plated	3/4-14	1.26 in
7688-C-16	1 in	Trivalent Zinc-Plated	1-11	1.614 in
