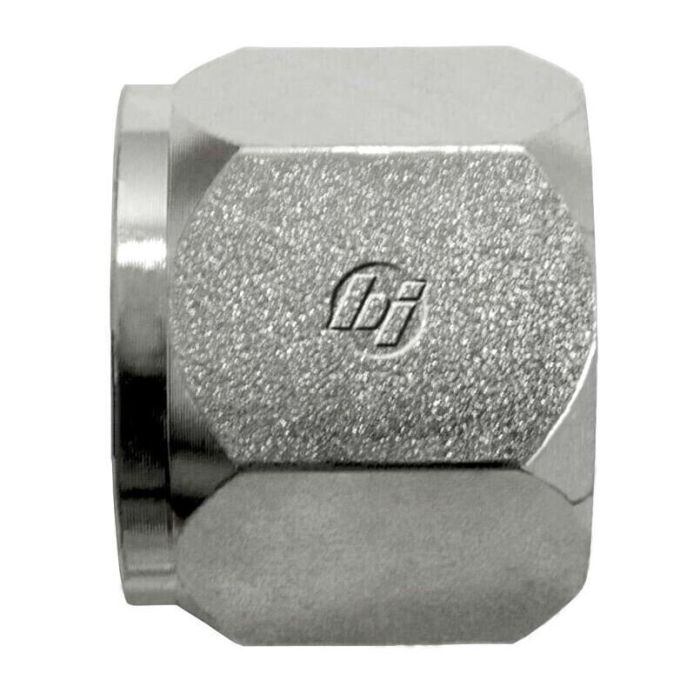

16FJIS CAP

Description & Features

Manufactured from straight steel, this cap fitting is designed for use with Female JIS 30-degree flare connections at a 1-11 thread size. The 16FJIS Cap is suited for capping or closing hydraulic lines where a secure, leak-resistant seal is required at the connection point.

Built to the Brennan Industries 7688-C series, this fitting conforms to JIS 30-degree flare standards, making it compatible with corresponding JIS hydraulic fittings in industrial hydraulic systems. The straight steel construction provides reliable durability in demanding service environments.

California residents: This product is subject to Prop 65 warnings. Refer to the specification table for full dimensional details.

SKU: 7688-C-16

Supplier Part Number (MPN): 7688-C-16

Specifications

Brand BRENNAN	Connection Size 1 1 in	Connection Type Female JIS	Connection Type 1 Female JIS	Cubic Inch Space L x W x H Dimensions 3.077 cu-in	Dimension Standards JIS B 0202	Dimensions 34.5 mm L	Finish Trivalent Zinc-Plated	Fitting Type Cap	Hex Size 1.614 in	Material Steel	Material Construction AISI 1045 Steel	Maximum Operating Pressure 3000 psi	Series 7688-C Series	Thread Size 1-11

Product Questions & Answers (1)

Question by: Cody H on Oct 17, 2025, 7:18 PM

Will this cap keep hydraulic fluid from leaking out of my lines?

Answer by: Customer Support on Oct 18, 2025, 9:35 PM

Yes, this cap fitting is designed for use with Female JIS 30-degree flare connections to create a secure, leak-resistant seal, preventing hydraulic fluid from escaping when capping or closing hydraulic lines.
