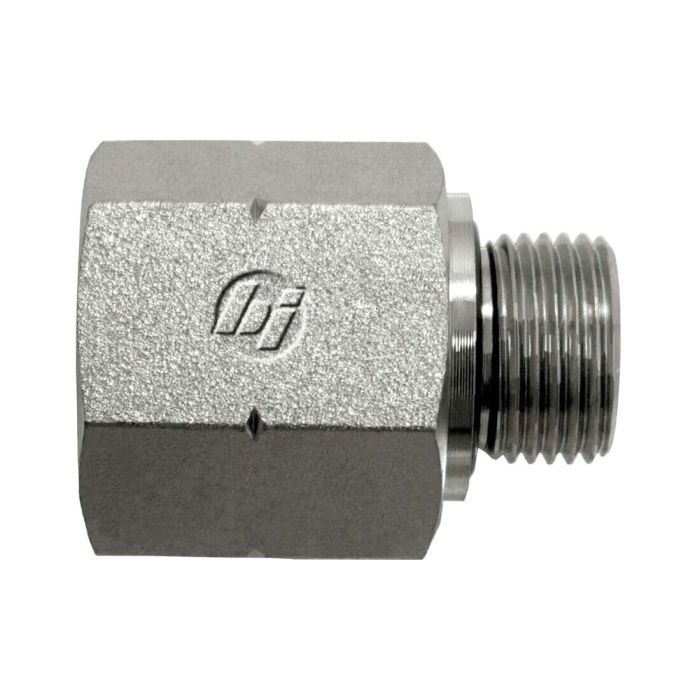

08FP-18MM ORR STRAIGHT. ORING/RET RING

Description & Features

Manufactured by Brennan Industries, this straight O-ring face seal fitting with retaining ring is sized for an 8 Femaleipe thread connection paired with an 18mm metric port. The 08FP-18MM ORR Straight O-Ring/Retaining Ring fitting is designed for use in hydraulic systems where a leak-free face seal connection is required between inch and metric port sizes. The integrated retaining ring holds the O-ring in place during assembly, reducing the risk of misalignment or displacement before the connection is fully seated.

This fitting suits applications where a straight, non-adjustable connection is needed at a metric boss port. The O-ring face seal design minimizes the potential for leakage under dynamic or high-pressure conditions, making it a reliable choice for mobile and industrial hydraulic assemblies.

SKU: 7741-08-18

Supplier Part Number (MPN): 7741-08-18

Specifications

Brand BRENNAN	Connection Size 1 1/2 in	Connection Size 2 18 mm	Connection Type FNPT, Male Metric	Connection Type 1 Female NPTF	Connection Type 2 Male Metric O-ring	Dimension Standards SAE J476	Finish Zinc Trivalent	Fitting Type Adapter	Hex Size 1-1/8 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Operating Temperature -40 to 250 deg F	Series 7741-ORR Series	Thread Size 1/2-14 x M18x1.5

Similar Products

Model Number	Connection Size 1	Connection Type 1	Connection Size 2	Thread Size	Hex Size
7741-02-10	1/8 in	Female NPTF	10 mm	1/8-27 x M10x1	0.563 in
7741-04-12	1/4 in	Female NPTF	12 mm	M12x1.5 x 1/4-18	3/4 in
7741-04-14	1/4 in	Female NPTF	14 mm	1/4-18, M14x1.5	3/4 in
7741-06-16	3/8 in	Female SAE NPTF	S16	M16x1.5 x 3/8-18
7741-08-22	1/2 in	Female NPTF	22 mm	M22x1.5 x 1/2-14	1-1/8 in
7741-12-27	3/4 in	Female NPTF		3/4-14 x M27x2	1.42 in
7741-16-33	1 in	Female NPTF		M33x2 x 1-11-1/2	1-5/8
