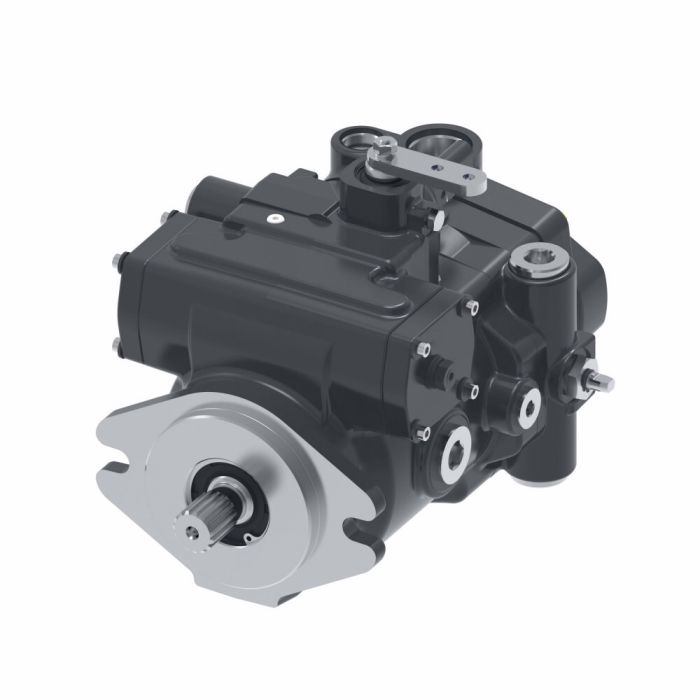

Danfoss / Eaton-Tandem Servo Pump ASSY

Description & Features

Designed for variable displacement closed circuit hydraulic systems, this tandem servo pump assembly covers displacement range from 20cc to 49cc (1.22 to 3.00 cu in), making it adaptable across a wide range of mobile equipment configurations. The sealed system design contributes to reliable, straightforward operation in demanding field environments.

The Danfoss / Eaton-Tandem Servo Pump Assembly is well suited for construction, agriculture, truck and bus, oil and gas, and other mobile applications where compact, dependable hydraulic power is required. Manufactured under the Danfoss Power Solutions brand, this unit falls within the 72400 Series medium duty closed circuit pump platform and is classified as a mobile closed circuit piston pump.

SKU: 78461-REH-04

Supplier Part Number (MPN): 78461-REH-04

Specifications

Control Type Servo	Cooling Method Heat Exchanger	Dimensions 8.734 in L x 6.26 in W x 11.012 in H	Drive Shaft Type Splined	Housing Color Black	Housing Finish Painted	Housing Material Iron	Inlet Size 1-1/16-12	Inlet Type SAE ORB	Maximum Operating Pressure 5500 psi	Mounting Type SAE B 2-Bolt Flange	nmfc 125820	Outlet Size 1-1/16-12	Outlet Type SAE ORB	Rotation Direction Clockwise	Series 72400 Series

Product Questions & Answers (1)

Question by: Janet B on Jan 31, 2026, 5:36 PM

Can this servo pump handle a lot of stop-and-go in mobile construction equipment?

Answer by: Customer Support on Feb 1, 2026, 6:35 PM

Designed for variable displacement closed circuit hydraulic systems, this tandem servo pump assembly is well-suited for demanding field environments like construction, agriculture, and oil & gas applications where you need dependable hydraulic power.
