Din X Male Metric W/Es Seal

Description & Features

This straight Din X Male Metric W/Es Seal features a Side 1 M26 X 1.5 Din Tube and a Side 2 M18 X 1.5 Metric connection.

Manufactured from steel, the Adaptall fitting has a Side 1 size of L18 and a Side 2 size of 18mm.

SKU: 5068L-18-18

Supplier Part Number (MPN): 5068L-18-18

Specifications

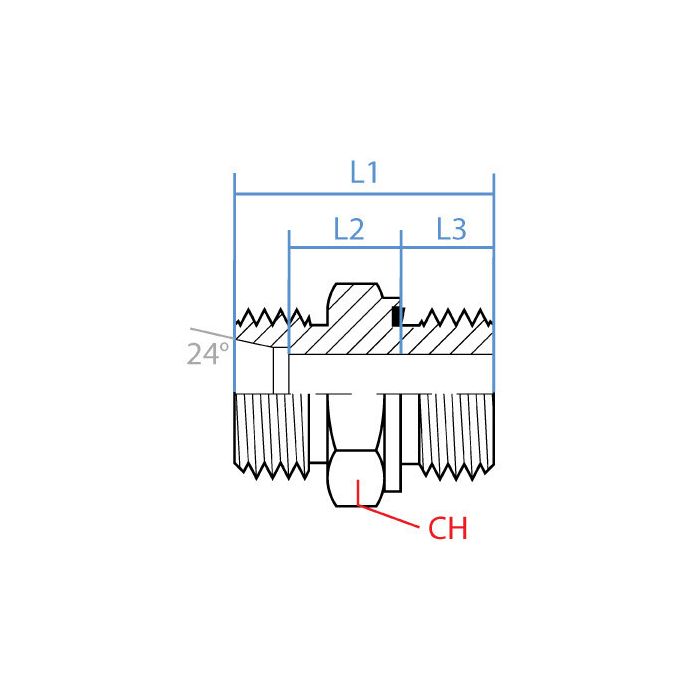

CH Width 27mm	L1 Length 36mm	L2 Length 14.5mm	L3 Length 14mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068L-18-18	Product Weight 0.15 lbs

Product Questions & Answers (2)

Question by: Merle G on Aug 22, 2025, 3:44 PM

what's the thread size on both ends of this fitting? trying to match it up to what I already got on the machine

Answer by: Customer Support on Aug 24, 2025, 10:50 AM

Side one runs an M26 x 1.5 DIN tube connection and side two is M18 x 1.5 metric. Both ends are male. The fitting is straight, so there's no angle to account for when you're routing your line.

Question by: Tammy R on Aug 4, 2025, 9:22 PM

What's the wrench size I need for this fitting?

Answer by: Customer Support on Aug 6, 2025, 4:02 PM

You'll need a 27mm wrench for tightening this fitting.
