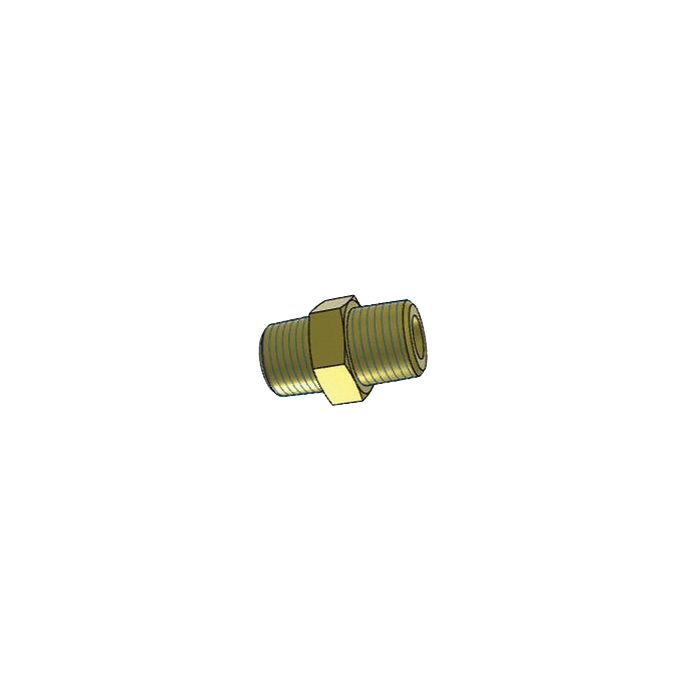

Brass Male Bspt Nipple

Description & Features

This straight Adaptall fitting is a brass male Bspt nipple with 1/8" male Bspt connections on both ends. It features a wrench flat of 12mm and an overall length of 19.5mm. Brass construction offers excellent corrosion resistance.

SKU: 8010-02-02

Supplier Part Number (MPN): 8010-02-02

Specifications

Brand adapt-all	Connection Size 1 1/8 in	Connection Size 2 1/8 in	Connection Type Male BSP	Connection Type 1 Male BSPT	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1	Dimensions 19.5 mm L	Finish Nickel-Plated	Fitting Type Nipple	Hex Size 12 mm	Material Brass	Material Construction Brass	Series 8010 Series	Thread Size 1/8-28

Product Questions & Answers (2)

Question by: Lynn E on Aug 26, 2025, 10:27 AM

What size wrench do I need to tighten this thing down?

Answer by: Customer Support on Aug 28, 2025, 9:36 AM

You'll want to use a 12mm wrench on the wrench flats of this nipple fitting.

Question by: Shawn J on Jul 4, 2025, 11:19 AM

got a tight spot to hook two 1/8 BSPT ports together, how long is this nipple end to end?

Answer by: Customer Support on Jul 6, 2025, 9:53 AM

Overall length on this straight brass BSPT nipple is 19.5 mm, measured end to end.
