Brass Male Bspt Nipple

Ask A Question

Description & Features

Crafted from high-quality brass, this male BSPT nipple is an essential component for industrial hydraulic applications. Designed with precision, it features a straight shape and the robust construction necessary for demanding environments. On one side, it offers an R 3/4 - 14 male connection, while the other side provides an R 1/2 - 14 male connection, ensuring versatile compatibility with various equipment. The BSPT thread type is known for its reliable sealing capabilities, making it a preferred choice for maintaining system integrity under pressure.

Manufactured by Adaptall, a trusted name in hydraulic parts, this brass male BSPT nipple combines durability with performance, making it suitable for a wide range of industrial uses. Its straightforward design and dependable material make it a practical solution for connecting different hydraulic components, ensuring efficient fluid transfer and system reliability.

SKU: 8010-12-08

Supplier Part Number (MPN): 8010-12-08

Specifications

Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Male BSP
Connection Type 1
Male BSPT
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1

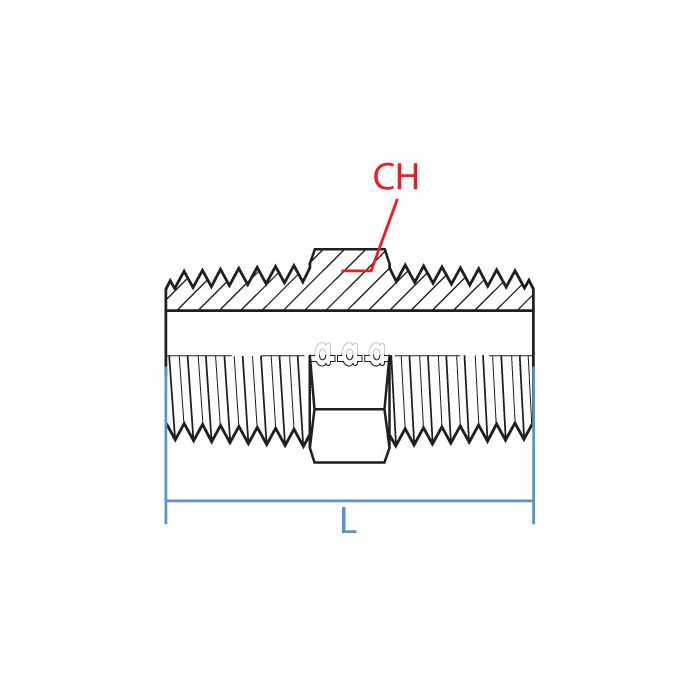

Dimensions
37.5 mm L
Finish
Nickel-Plated
Fitting Type
Nipple
Hex Size
27 mm
Material
Brass
Material Construction
Brass
Series
8010 Series
Thread Size
3/4-14 x 1/2-14

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Neil A on May 29, 2025, 3:11 PM
got a hose end that’s R 3/4 - 14 BSPT and another port that’s R 1/2 - 14 BSPT. is this the nipple that steps it down between those two
Answer by: Customer Support on May 31, 2025, 9:30 AM
For stepping between those two BSPT male sizes, yes. This nipple is straight brass with an R 3/4 - 14 male thread on one end and an R 1/2 - 14 male thread on the other, both BSPT.
Question by: Peggy G on Nov 5, 2025, 4:08 PM
Will this here nipple work to hook up a 1/2" line to a 3/4" one?
Answer by: Customer Support on Nov 7, 2025, 6:56 AM
It's designed to do just that, connecting a 1/2" BSPT male end to a 3/4" BSPT male end.
Question by: Dale H on Jun 15, 2025, 2:01 PM
Got a line running 3/4 BSPT on one end and 1/2 BSPT on the other, this the right piece to tie those together?
Answer by: Customer Support on Jun 16, 2025, 4:18 PM
That's what this nipple is built for. One end is R 3/4 - 14 male BSPT and the other is R 1/2 - 14 male BSPT, so it bridges those two sizes in a single straight fitting. Both sides are male, so you'll need female BSPT ports or couplings on whatever you're connecting it to. Brass construction holds up well in standard hydraulic fluid environments, and BSPT threads seal reliably when properly fitted.
