F. A13D 1/2 NPT

Ask A Question

Description & Features

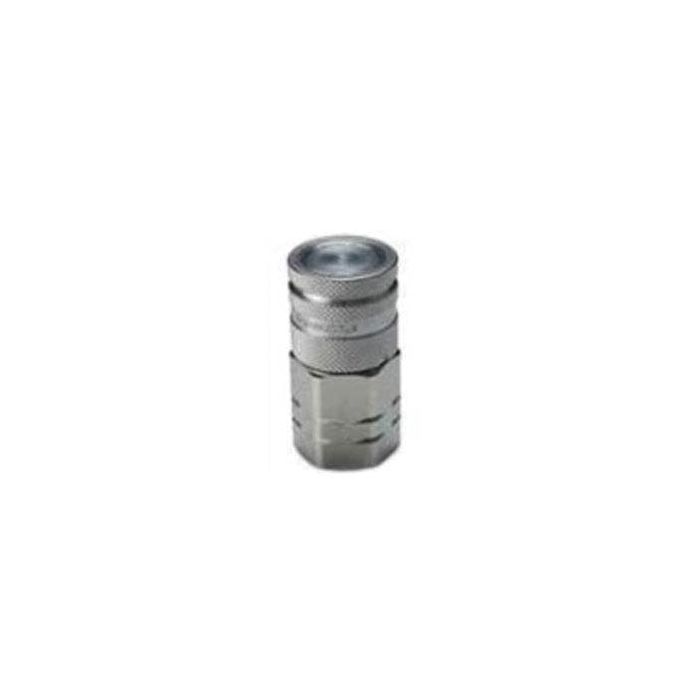

Manufactured by Stucchi USA, this female hydraulic coupling features a 1/2 NPT threaded connection, designed for reliable fluid transfer in industrial hydraulic circuits. The A13D series is a well-established line of flat-face or poppet-style couplings commonly used in agricultural, construction, and general industrial hydraulic systems where secure, leak-resistant connections are required.

The F. A13D 1/2 NPT is suited for applications where a standardized threaded port connection is needed at the female half of a quick-disconnect coupling assembly. The 1/2 NPT thread size makes it compatible with a broad range of hydraulic lines and port fittings in that bore class.

SKU: 801301010

Supplier Part Number (MPN): 801301010

Specifications

Brand
Stucchi®
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female, FNPT
Connection Type 1
Female
Connection Type 2
Female NPT
Dimension Standards
ANSI/ASME B1.20.1
Dimensions
1.57 in Dia x 3.02 in L
Finish
Zinc-Plated
Fitting Type
Coupler
Hex Size
1.42 in
Material
Steel
Material Construction
CR3 Carbon Steel
Series
A Premier Series

Product Questions & Answers (1)

Question by: Keith M on Oct 8, 2025, 3:57 PM
Will this fit any standard 1/2" NPT fitting I have on my tractor?
Answer by: Customer Support on Oct 10, 2025, 7:13 AM
This Stucchi female coupling comes with a 1/2" NPT threaded connection, so it should be compatible with any standard hydraulic lines or port fittings of that size.
