Brass Male Bspt X Female Npt

Description & Features

This straight brass fitting adapts between BSPT and NPT thread types, connecting male BSPT to female NPT.

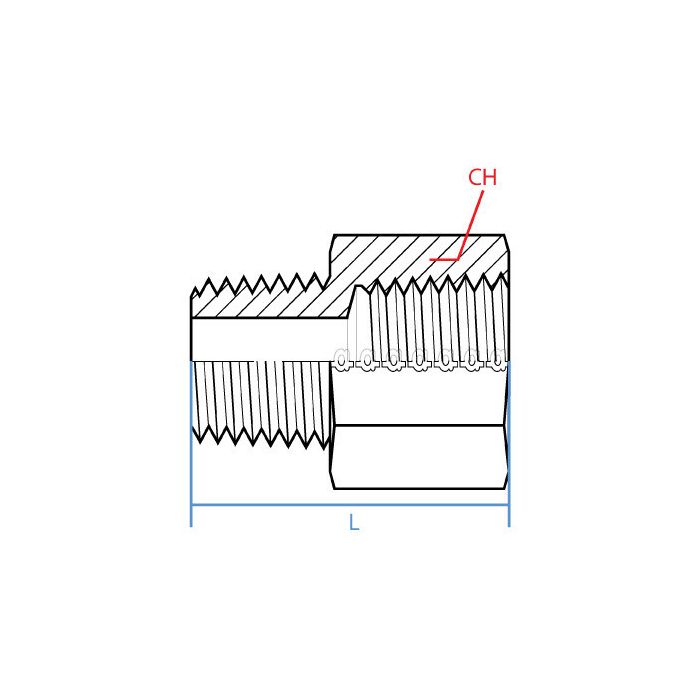

The Brass Male Bspt X Female NPT adapter features a 1/4" male BSPT side with R 1/4 - 19 callout, and a 1/4" female NPT side with 1/4 - 18 NPTF callout. It has a 19mm wrench flat and an overall length of 33.9mm.

SKU: 8036-04-04

Supplier Part Number (MPN): 8036-04-04

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type FNPT, Male BSP	Connection Type 1 Male BSPT	Connection Type 2 Female NPTF	Dimension Standards ANSI B1.20.3, DIN EN 10226-1	Dimensions 34 mm L	Finish Nickel-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Brass	Material Construction Brass	Series 8036 Series	Thread Size 1/4-19 x 1/4-18

Product Questions & Answers (1)

Question by: Floyd B on Sep 12, 2025, 9:33 PM

got a female 1/4 NPT port but the other side is BSPT, is this the adapter for that?

Answer by: Customer Support on Sep 14, 2025, 6:46 AM

For adapting thread types, this fitting goes from a 1/4 inch male BSPT on one end (R 1/4 - 19) to a 1/4 inch female NPTF on the other (1/4 - 18 NPTF). It is a straight brass adapter meant specifically for that BSPT to NPT connection.
