Brass Male Npt X Female Bspt

Description & Features

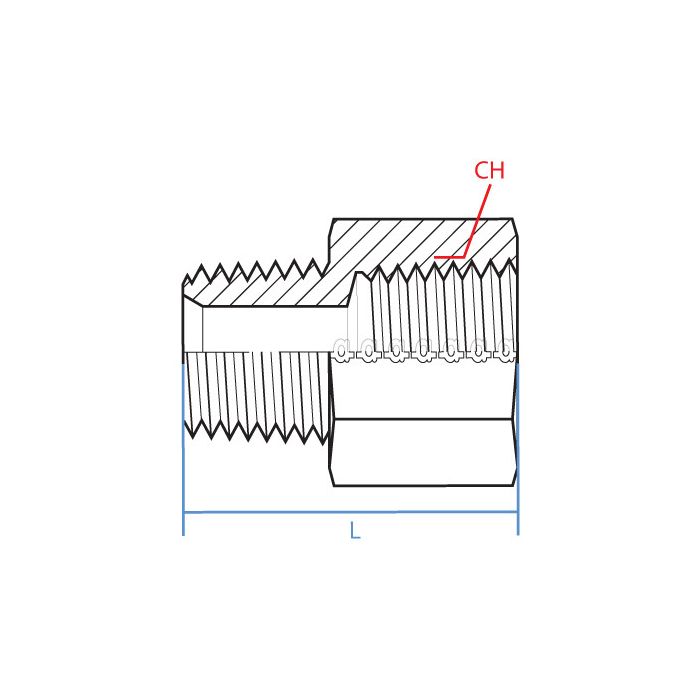

Designed for transitioning between American and British thread standards, this straight brass adapter features a 1-1/4" Male NPT connection on one end, threaded at 1-1/4 - 11.5 NPTF, and a 1-1/4" Female BSPT connection on the other, with an R 1-1/4 - 11 thread form. The Brass Male Npt X Female Bspt from Adaptall provides a reliable conversion point where NPT and BSPT thread types meet within the same assembly.

Brass construction offers good corrosion resistance and is well suited to hydraulic and fluid system applications where thread compatibility between imperial and metric-standard equipment is required. The straight configuration keeps the connection compact and in-line without altering flow direction.

SKU: 8037T-20-20

Supplier Part Number (MPN): 8037T-20-20

Specifications

Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Female BSP, MNPT	Connection Type 1 Male NPT	Connection Type 2 Female BSPT	Dimension Standards ANSI B1.20.3, DIN EN 10226-1	Dimensions 56.5 mm L	Finish Nickel-Plated	Fitting Type Adapter	Material Brass	Material Construction Brass	Series 8037T Series	Thread Size 1-1/4-11-1/2 x 1-1/4-11

Product Questions & Answers (1)

Question by: Ricky S on Jul 4, 2025, 2:16 PM

Got some British-made equipment I'm trying to tie into an existing NPT system. This adapter work for that kind of crossover situation?

Answer by: Customer Support on Jul 6, 2025, 1:28 PM

Connecting NPT and BSPT threaded components is exactly what this fitting is built for. One end is a 1-1/4" Male NPT at 1-1/4 - 11.5 NPTF, and the other is a 1-1/4" Female BSPT at R 1-1/4 - 11. So if you've got a male BSPT port on your imported equipment and an NPT line coming in from your domestic setup, this gives you a straight, in-line transition without any awkward bends or offsets.
