Brass M.Bspp X F.Bspp Bushing

Ask A Question

Description & Features

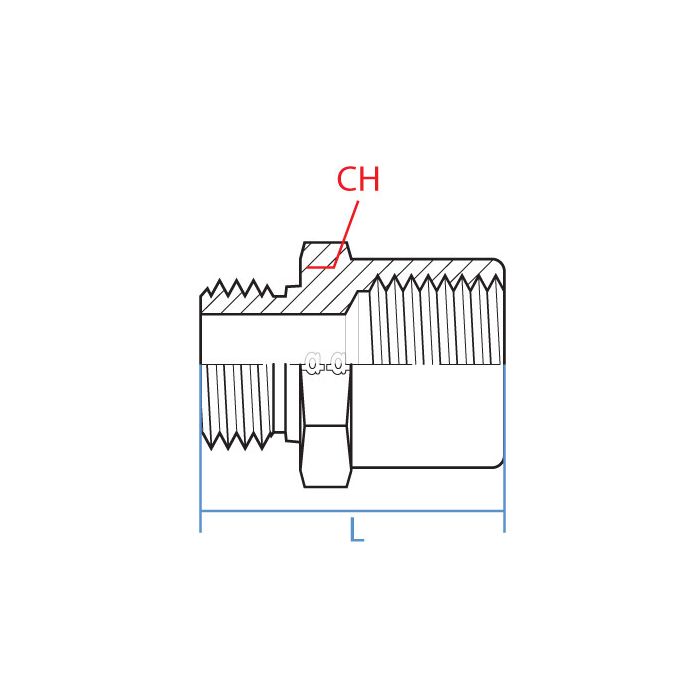

This straight Adaptall bushing is constructed of brass and features male BSPP on one side and female BSPP on the other. The male side has a G 1/2-14 callout and 1/2" size, while the female side has a G 1/4-19 callout and 1/4" size. This Brass M.BSPP X F.BSPP Bushing has an Adaptall Ch Width of 24 and an Adaptall L Length of 15.5.

SKU: 8039-08-04

Supplier Part Number (MPN): 8039-08-04

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/4 in
Connection Type
Female BSP, Male BSP
Connection Type 1
Male BSPP
Connection Type 2
Female BSPP
Dimension Standards
BS 5200
Dimensions
15.5 mm L
Finish
Nickel-Plated
Fitting Type
Bushing
Hex Size
24 mm
Material
Brass
Material Construction
Brass
Series
8039 Series
Thread Size
1/4-19 x 1/2-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Tony T on Feb 6, 2026, 4:20 PM
Got a 1/2 inch BSPP male fitting on a manifold block and need to step it down to a 1/4 inch female BSPP port. this bushing do that job?
Answer by: Customer Support on Feb 8, 2026, 6:21 AM
That's what it's built for. The male side is G 1/2-14 at 1/2 inch, and the female side is G 1/4-19 at 1/4 inch, so you're threading the larger male end into your manifold and running a 1/4 inch BSPP fitting into the female end. Straight configuration, brass construction, no bends or offsets involved.
