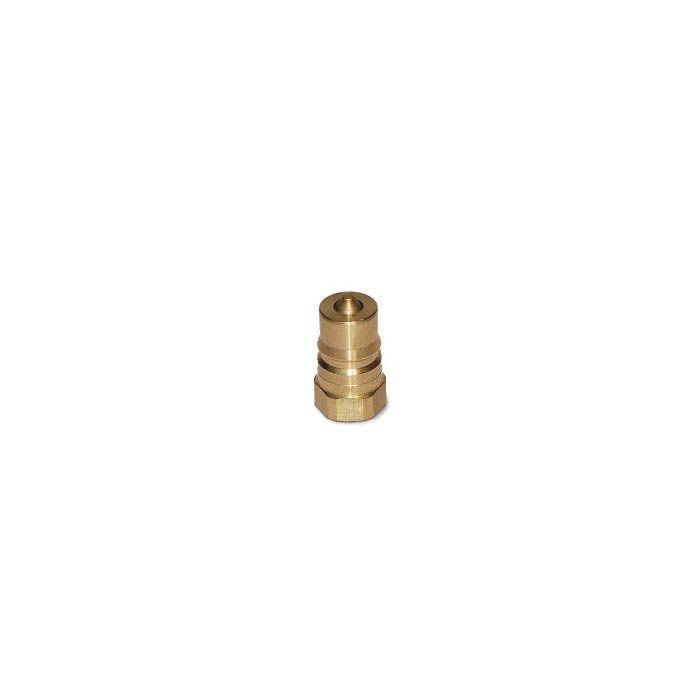

804501101

Description & Features

A male NPT fitting in the 1/8 NPT thread size, the 804501101 is a compact hydraulic connector suited for low-flow line connections and instrumentation ports in industrial hydraulic and fluid power circuits. The male NPT thread form provides a tapered, pressure-responsive seal when engaged with a compatible female NPT port, making it a practical choice for gauge taps, sensor ports, and similar small-bore connection points.

With limited attribute data available, buyers should confirm compatibility with system thread standards and port specifications prior to ordering.

SKU: 804501101

Supplier Part Number (MPN): 804501101

Specifications

Brand Stucchi®	Connection Size 1 1/8 in	Connection Size 2 1/8 in	Connection Type FNPT, Male	Connection Type 1 Male	Connection Type 2 Female NPT	Dimension Standards ANSI/ASME B1.20.1	Dimensions 0.62 in Dia x 1.18 in L	Fitting Type Nipple	Hex Size 0.55 in	Material Brass	Material Construction Brass	Series IRBO Series

Product Questions & Answers (1)

Question by: Glen M on Aug 2, 2025, 11:46 AM

Would this fitting work okay for hooking up a pressure gauge on a hydraulic system?

Answer by: Customer Support on Aug 3, 2025, 3:18 PM

Specifically, this male NPT fitting is a good choice for gauge taps and small sensor ports where you need a reliable pressure seal. Just make sure the thread size matches what you have on your system.
