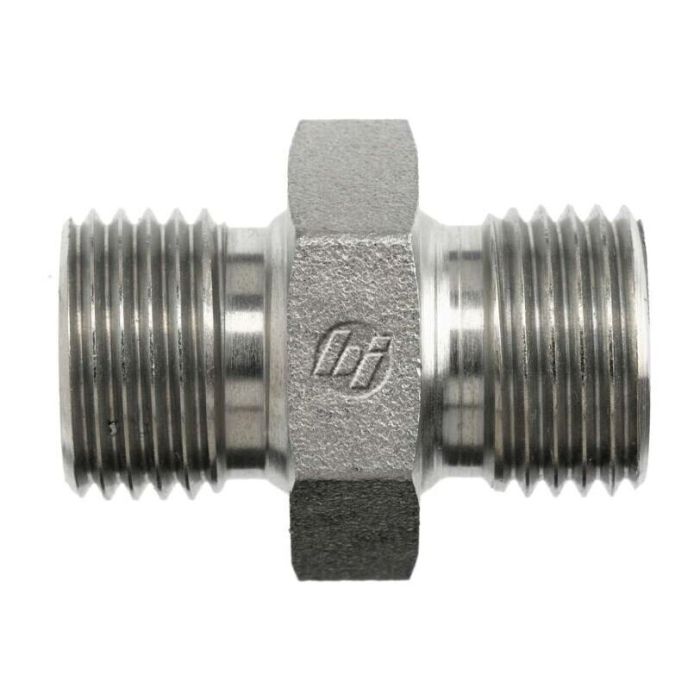

main product photo

M16X1.5-M16X1.5 HEX NIPPLE W 60 DEG SEAT

Ask A Question

Description & Features

Constructed from straight steel, this male-to-male metric hex nipple connects two M16x1.5 threaded ports using identical 60-degree seat ends on both sides. Both threads conform to ISO 9974, making the M16X1.5-M16X1.5 Hex Nipple W 60 Deg Seat a reliable choice for metric hydraulic circuits requiring a secure, leak-resistant metal-to-metal seal at each connection point.

Manufactured by Brennan Industries and part of the 8055 Series, this fitting is suited for use in hydraulic systems where matched metric thread sizes are needed on both ends. The 60-degree seat geometry provides positive seating without relying on soft seals, supporting consistent performance under pressure. California residents should note that this product is subject to Proposition 65 warnings.

SKU: 8055-16-16

Supplier Part Number (MPN): 8055-16-16

Specifications

Brand
BRENNAN
Connection Size 1
S16
Connection Size 2
S16
Connection Type
Male Metric
Connection Type 1
Male Metric 60 deg Cone
Connection Type 2
Male Metric 60 deg Cone
Cubic Inch Space L x W x H Dimensions
0.916 cu-in
Dimensions
32.5 mm L
Finish
Trivalent Zinc-Plated
Fitting Type
Nipple
Hex Size
22 mm
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Series
8055 Series
Thread B1 Drill Dimensions
9 mm
Thread B2 Drill Dimensions
9 mm
Thread Size
M16x1.5

Product Questions & Answers (1)

Question by: Ricky F on Nov 18, 2025, 8:46 AM
Will this hex nipple work with any standard M16x1.5 port? I just wanna make sure before I order a bunch.
Answer by: Customer Support on Nov 19, 2025, 5:57 PM
As long as the ports you're connecting also use the M16x1.5 thread size and ISO 9974 specification, this hex nipple should work just fine. It's designed for hydraulic circuits needing that specific metric connection on both ends with a 60-degree seat.
