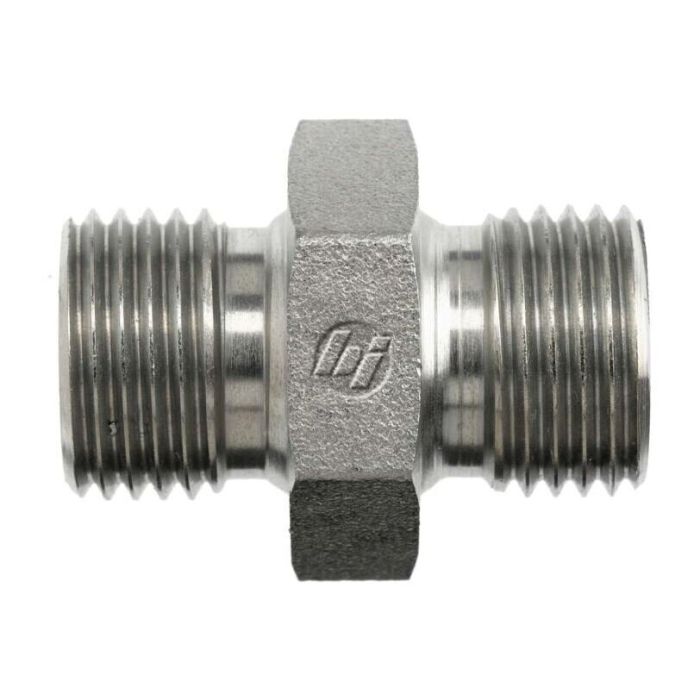

M22X1.5-M22X1.5 HEX NIPPLE W 60 DEG SEAT

Ask A Question

Description & Features

Designed for straight male-to-male metric connections, the M22X1.5-M22X1.5 Hex Nipple W 60 Deg Seat provides a double-ended M22x1.5 male metric fitting with 60-degree seat geometry on both ends. Both threads conform to ISO 9974, making this fitting suitable for hydraulic circuits that require standardized metric port connections with reliable metal-to-metal sealing at the seat.

Manufactured from straight steel, this Brennan Industries Series 8055 fitting is built for the mechanical demands of industrial hydraulic systems. The hex body allows for standard wrench engagement during installation and torquing. California residents should note that this product is subject to Proposition 65 warnings.

SKU: 8055-22-22

Supplier Part Number (MPN): 8055-22-22

Specifications

Brand
BRENNAN
Connection Size 1
L22
Connection Size 2
22 mm
Connection Type
Male Metric
Connection Type 1
Male Metric 60 deg Cone
Connection Type 2
Male Metric 60 deg Cone
Dimension Standards
ISO 9974
Dimensions
36 mm L
Finish
Zinc Trivalent
Fitting Type
Nipple
Hex Size
27 mm
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
3500 psi
Series
8055 Series
Thread Size
M22x1.5

Similar Products

Model Number Connection Size 1 Connection Size 2 Finish Thread Size Hex Size Maximum Operating Pressure Price Action
M16X1.5-M16X1.5 HEX NIPPLE W 60 DEG SEAT

8055-16-16

S16

S16

Trivalent Zinc-Plated

M16x1.5

22 mm

5000 psi

M18X1.5-M18X1.5 HEX NIPPLE W 60 DEG SEAT

8055-18-18

18 mm

18 mm

Zinc Trivalent

M18x1.5

24 mm

3500 psi

M20X1.5-M20X1.5 HEX NIPPLE W 60 DEG SEAT

8055-20-20

20 mm

20 mm

Zinc Trivalent

M20x1.5

27 mm

3500 psi

Product Questions & Answers (1)

Question by: Hubert C on Aug 30, 2025, 12:30 PM
Will this here fitting work to connect two M22x1.5 ports with 60-degree seats?
Answer by: Customer Support on Sep 1, 2025, 8:24 AM
That's exactly what it's for. This hex nipple provides a straight, male-to-male connection between two M22x1.5 ports, both with 60-degree seats. It's made to ISO 9974 standards, so it ought to seal up reliably in your hydraulic lines.
