main product photo

806504002

Ask A Question

Description & Features

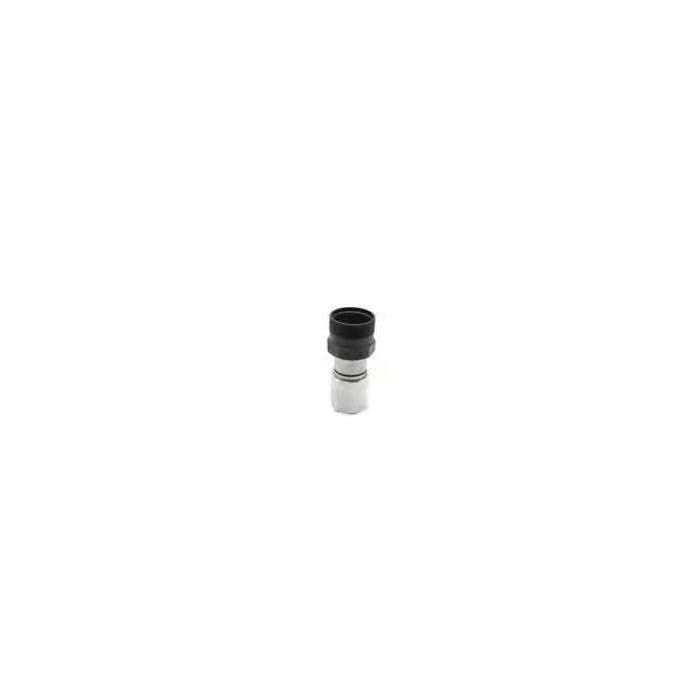

This male-configuration hydraulic quick coupling from Stucchi is identified by the F.VEP 17P 1 SAE designation, indicating a 1-inch SAE port size suited to mid-to-large hydraulic circuit connections. Designed for use in demanding industrial and mobile hydraulic applications, the coupling provides a reliable connect/disconnect interface where fluid transfer efficiency and leak-free performance are essential.

Stucchi's F.VEP series is a well-regarded line within the hydraulic coupling market, commonly specified for agricultural equipment, construction machinery, and industrial hydraulic systems requiring consistent flow capacity at the 1-inch connection size. The male half mates with corresponding female couplings in the F.VEP range, ensuring compatibility within the series.

SKU: 806504002

Supplier Part Number (MPN): 806504002

Specifications

Brand
Stucchi®
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female, Female SAE
Connection Type 1
Female
Connection Type 2
Female SAE
Dimension Standards
SAE J1926-1
Dimensions
1.81 in Dia x 3.93 in L
Finish
Zinc-Plated
Fitting Type
Coupler
Hex Size
1.81 in
Material
Steel
Material Construction
CR3 Carbon Steel
Maximum Operating Pressure
7250 psi
Series
VEP-P Series
Thread Size
M50x3

Product Questions & Answers (1)

Question by: Denise R on Jul 13, 2025, 7:34 AM
Will this fit with other Stucchi F.VEP series couplers, or do I need to watch out for the size?
Answer by: Customer Support on Jul 14, 2025, 11:10 AM
This male coupler is part of the Stucchi F.VEP series, so it's designed to be compatible with female couplings from the same series, as long as the sizes match up. This one's a 1-inch SAE port size.
