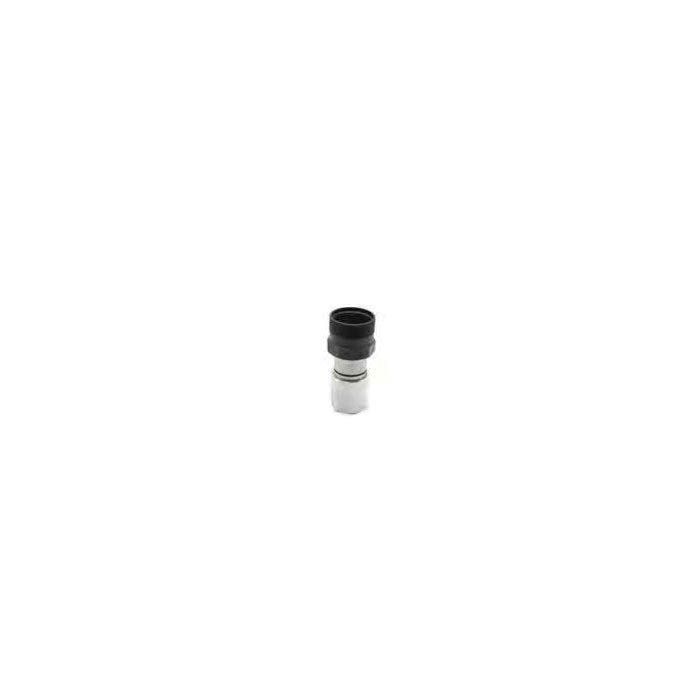

main product photo

806504012

Ask A Question

Description & Features

Designed for hydraulic circuit connection and disconnection, the Stucchi F VEP30P 112 SAE is a male quick-release coupling configured to the SAE 112 standard. The male half is suited for use in systems requiring reliable, low-spillage coupling performance typical of Stucchi's VEP series flat-face design.

With a male configuration, this coupling is intended for pairing with a corresponding female half to form a complete hydraulic connection point. The VEP30P series is commonly applied in mobile hydraulic equipment and industrial machinery where controlled fluid transfer and minimal leakage on connection and disconnection are priorities.

SKU: 806504012

Supplier Part Number (MPN): 806504012

Specifications

Brand
Stucchi®
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Female, Female SAE
Connection Type 1
Female
Connection Type 2
Female SAE
Dimension Standards
SAE J1926-1
Dimensions
2.56 in Dia x 5.26 in L
Finish
Zinc-Plated
Fitting Type
Coupler
Material
Steel
Material Construction
CR3 Carbon Steel
Maximum Operating Pressure
5800 psi
Series
VEP-P Series
Thread Size
M80x4

Product Questions & Answers (1)

Question by: Patty S on Nov 25, 2025, 12:27 PM
Is this here coupling gonna work with my existing Stucchi female end, or do I need to buy both halves?
Answer by: Customer Support on Nov 27, 2025, 6:35 AM
Since this is the male half, it's designed to pair with a corresponding female half to create a complete hydraulic connection.
