06MJIS-06MBSPT STRAIGHT

Description & Features

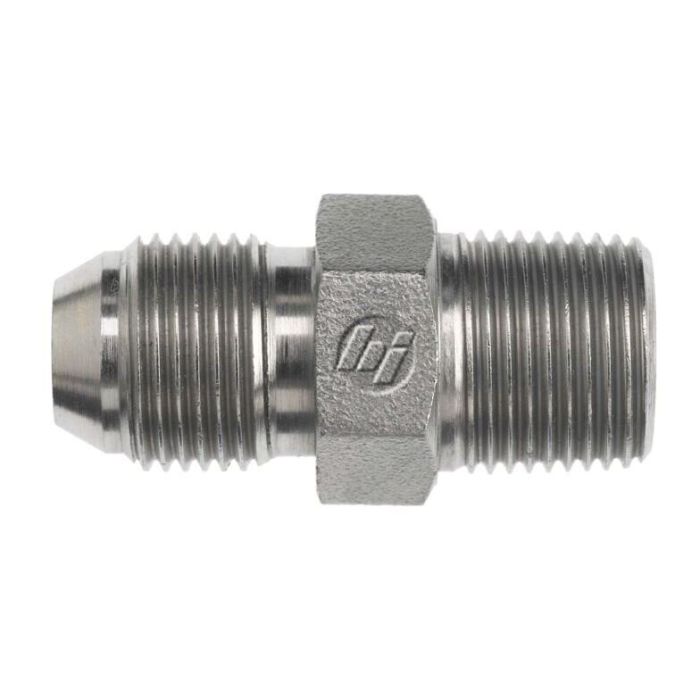

Constructed from durable straight steel, this hydraulic fitting is designed for robust industrial applications. The 06MJIS-06MBSPT Straight fitting features a Male JIS 30 Degree Flare thread on one end and a Male BSPT (R) thread on the other, ensuring reliable connections. With a thread size of 3/8-19 on both ends, it adheres to JIS B 0202 and ISO 7-1 thread specifications, making it suitable for various hydraulic systems requiring precise and secure connections.

This fitting from the Brennan Series 8080 offers a compact design with a cubic inch space of 0.859, optimizing space without compromising performance. It's an excellent choice for systems where size efficiency and sturdy material are critical. Please note the PROP-65 warning for California residents.

SKU: 8080-06-06

Supplier Part Number (MPN): 8080-06-06

Specifications

Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Male BSP, Male JIS	Connection Type 1 Male JIS	Connection Type 2 Male BSPT 30 deg	Cubic Inch Space L x W x H Dimensions 0.859 cu-in	Dimension Standards JIS B 0202	Dimensions 40.7 mm L	Finish Trivalent Zinc-Plated	Fitting Type Union	Hex Size 19 mm	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Series 8080 Series	Thread B1 Drill Dimensions 8 mm	Thread B2 Drill Dimensions 12 mm	Thread Size 3/8-19

Product Questions & Answers (1)

Question by: Eddie W on Aug 30, 2025, 7:29 PM

Will this fitting hold up okay in a hydraulic system that sees a lot of pressure spikes?

Answer by: Customer Support on Sep 1, 2025, 6:32 AM

Constructed from durable straight steel, this fitting is designed for robust industrial applications, so it should be suitable for systems where pressure spikes are common.
