main product photo

808304016

Ask A Question

Description & Features

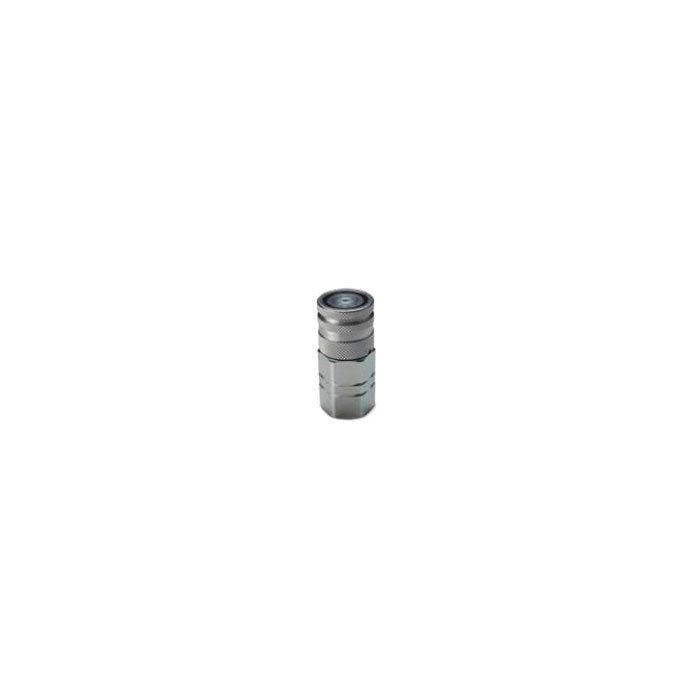

Manufactured by Stucchi Usa Inc, this hydraulic flat-face quick disconnect coupling is designed for use in demanding industrial hydraulic circuits. The A13 HD series is built to handle half-inch SAE connections, making it a practical fit for mid-range hydraulic lines where reliable coupling performance and leak-free disconnection are required.

808304016 is part of the heavy-duty A13 HD product line, which is engineered for applications involving higher pressure cycles and frequent connect/disconnect use. Flat-face coupling designs minimize fluid loss and air inclusion during connection, which is a key consideration in precision hydraulic circuits.

SKU: 808304016

Supplier Part Number (MPN): 808304016

Specifications

Brand
Stucchi®
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female, Female SAE
Connection Type 1
Female
Connection Type 2
Female SAE
Dimension Standards
SAE J1926-1
Dimensions
1.57 in Dia x 3.02 in L
Finish
Zinc-Plated
Fitting Type
Coupler
Material
Steel
Material Construction
CR3 Carbon Steel
Series
A-HD Series

Product Questions & Answers (1)

Question by: Duane M on Apr 6, 2026, 7:33 PM
Will this flat-face fitting help cut down on hydraulic fluid leaks when I disconnect? Hate making a mess.
Answer by: Customer Support on Apr 8, 2026, 7:28 PM
Yes, the flat-face design of this coupling is specifically meant to minimize fluid loss when you disconnect. It also helps keep air from getting into your hydraulic system during connection, which can be important for precision work.
