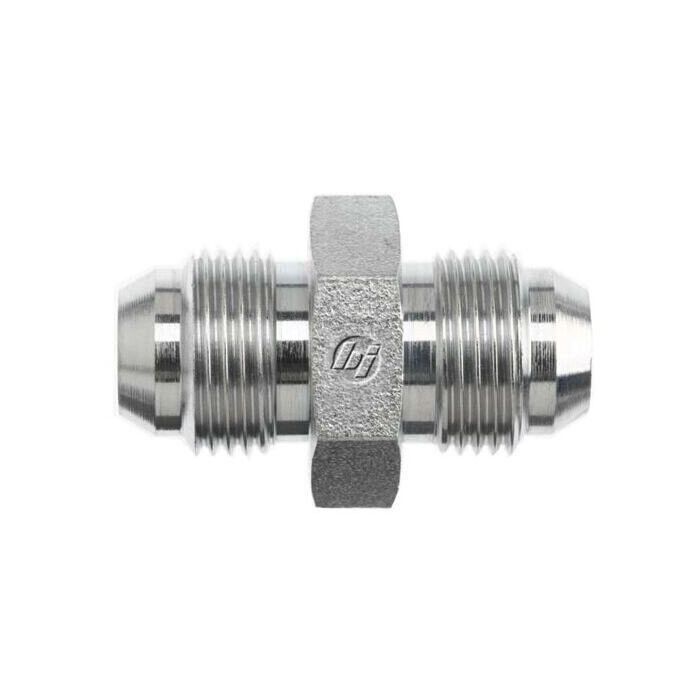

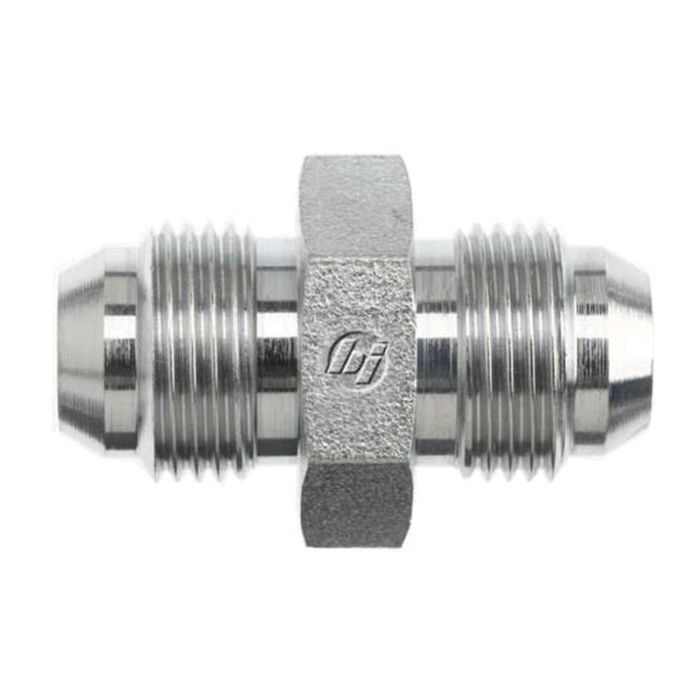

08MJIS-08MJIS STRAIGHT UNION

Description & Features

This 08MJIS-08MJIS Straight Union is an essential component for hydraulic systems requiring secure and reliable connections. Constructed from high-quality straight steel, this union is designed to withstand demanding industrial environments. It features a 1/2-14 BSPP thread with a 30-degree flare, ensuring compatibility with male JIS 30-degree flare fittings. The precise thread drill of 11.0 mm for both B1 and B2 sides guarantees a robust and leak-proof connection, making it ideal for various hydraulic applications.

With a compact design measuring 1.477 cubic inches in space, this union efficiently facilitates hydraulic fluid flow while minimizing space usage. Manufactured by Brennan Industries, it aligns with their renowned standards for durability and performance. This product is an excellent choice for professionals seeking a dependable solution for their hydraulic assembly needs.

SKU: 8088-08-08

Supplier Part Number (MPN): 8088-08-08

Specifications

Brand BRENNAN	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Male JIS	Connection Type 1 Male JIS	Connection Type 2 Male JIS	Dimension Standards JIS B 0202	Dimensions 50 mm L	Finish Zinc Trivalent	Fitting Type Union	Hex Size 22 mm	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Series 8088 Series	Thread B1 Drill Dimensions 11 mm	Thread B2 Drill Dimensions 11 mm	Thread Size 1/2-14

Product Questions & Answers (1)

Question by: Randy H on Aug 15, 2025, 6:08 AM

Will this union work with standard hydraulic fittings?

Answer by: Customer Support on Aug 16, 2025, 2:35 PM

This straight union is made with a 1/2-14 BSPP thread and a 30-degree flare, so it's designed to fit male JIS 30-degree flare fittings.
