Din X Male Metric W/Es Seal

Ask A Question

Description & Features

This Adaptall straight fitting is a Din X Male Metric W/Es Seal. It features a Din Tube connection on Side 1 with a M52 x 2.0 callout and L42 size. Side 2 features a Metric connection with a M48 x 2.0 callout and 48mm size.

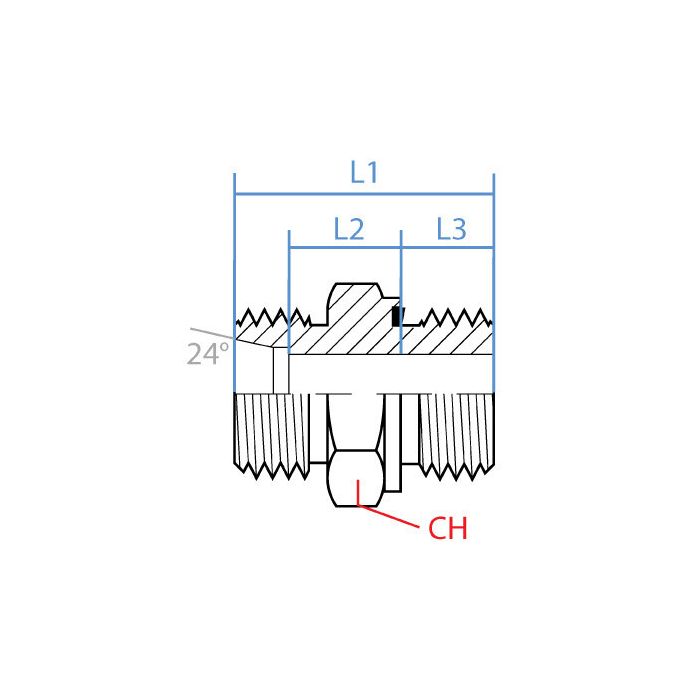

This steel fitting has a Adaptall Ch Width of 55mm, Adaptall L1 Length of 52mm, Adaptall L2 Length of 19mm, and Adaptall L3 Length of 22mm.

SKU: 5068L-42-48

Supplier Part Number (MPN): 5068L-42-48

Specifications

Brand
adapt-all
Connection Size 1
L42
Connection Size 2
M48
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric Elastomeric Seal
Dimension Standards
DIN 2353, DIN 7631, ISO 6149, ISO 8434-1, ISO 9974
Dimensions
52 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
55 mm
Material
Steel
Material Construction
Carbon Steel
Series
5068 Series
Thread Size
M52x2 x M48x2

Product Questions & Answers (1)

Question by: Phil F on Apr 20, 2025, 7:24 AM
trying to match up an old adaptall fitting, what threads are on each end of this one?
Answer by: Customer Support on Apr 22, 2025, 6:51 AM
On the DIN tube side (Side 1) it is a male M52 x 2.0, size L42. The other end (Side 2) is a male metric M48 x 2.0 with a 48 mm size.
