Brass Male Metric X Female Npt

Ask A Question

Description & Features

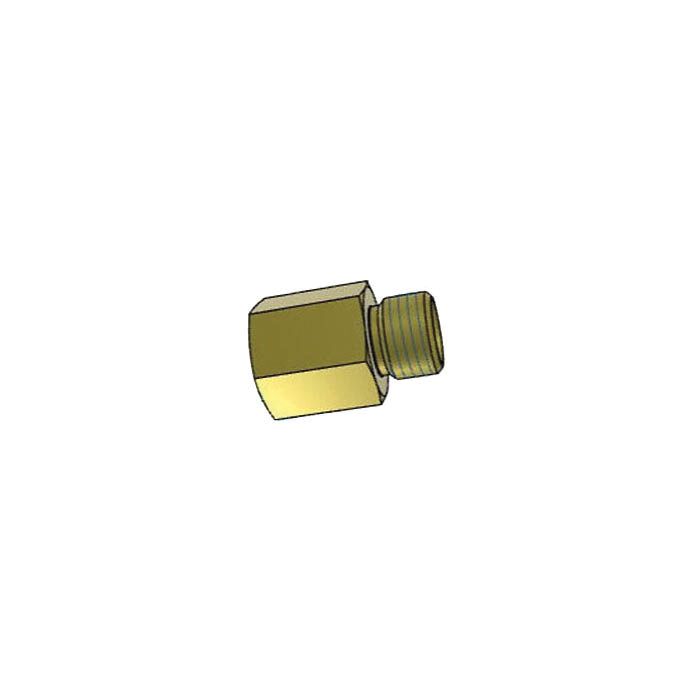

This straight brass adapter fitting features a male metric M14 x 1.5 connection on one side and a female 1/8" NPT connection on the other. This Brass Male Metric X Female Npt fitting is constructed from durable brass.

The Adaptall fitting has a 19mm wrench flat for secure installation.

SKU: 8235-14-02

Supplier Part Number (MPN): 8235-14-02

Specifications

Brand
adapt-all
Connection Size 1
14 mm
Connection Size 2
1/8 in
Connection Type
FNPT, Male Metric
Connection Type 1
Male Metric
Connection Type 2
Female NPTF
Dimension Standards
ANSI B1.20.3, DIN 7631
Dimensions
30 mm L
Finish
Nickel-Plated
Fitting Type
Adapter
Hex Size
19 mm
Material
Brass
Material Construction
Brass
Series
8235 Series
Thread Size
M14x1.5 x 1/8-27

Product Questions & Answers (3)

Question by: Dale H on Jul 22, 2025, 6:56 PM
Will this fitting hold up to some decent pressure or is it more for low-pressure stuff?
Answer by: Customer Support on Jul 24, 2025, 10:32 AM
Constructed from durable brass, this fitting should handle typical hydraulic pressures well, but it's always best to check your system's specific pressure requirements to ensure compatibility.
Question by: Wayne P on Sep 28, 2025, 9:24 PM
fitting's got a male M14 x 1.5 thread on one end -- does the other side take standard 1/8 NPT female connections or is it some oddball size?
Answer by: Customer Support on Sep 30, 2025, 4:22 PM
The female end is 1/8-27 NPTF, which is the standard 1/8" NPT thread. That size is about as common as it gets in hydraulic and pneumatic hydraulic connections, so you should have no trouble mating it to any standard 1/8" NPT male fitting or port.
Question by: Connie R on Sep 25, 2025, 9:27 PM
got a port that’s 1/8-27 nptf female and I need to adapt it to a metric M14 x 1.5 line, is this the right fitting?
Answer by: Customer Support on Sep 27, 2025, 7:41 AM
For that combination, it matches up as a straight brass adapter with a male M14 x 1.5 on one side and a female 1/8 - 27 NPTF on the other.
