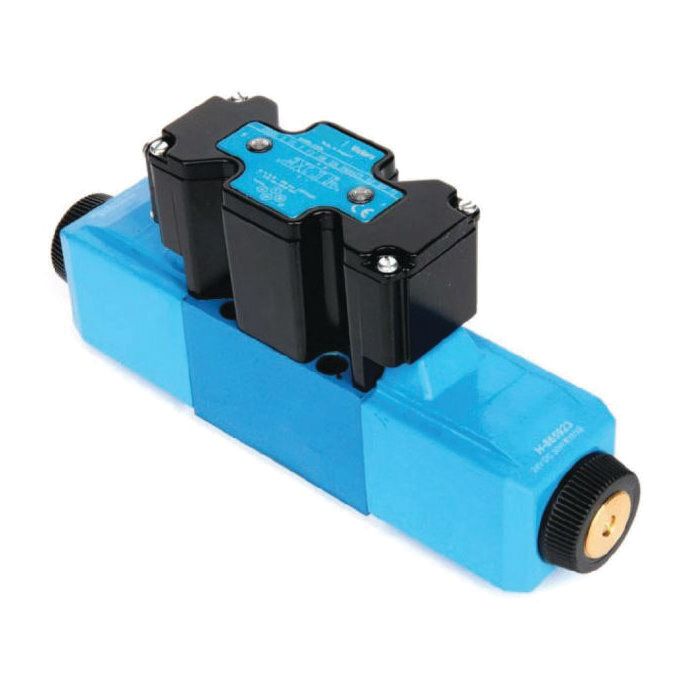

VICKERS DG4V-3-35A-VM-S7-U-H7-60

Ask A Question

Description & Features

Designed for demanding industrial environments, the Vickers DG4V-3-35A-VM-S7-U-H7-60 is a single-stage directional control valve offering three- or four-way directional control with a maximum flow rate of 80 litres per minute. The valve mounts easily on industry-standard surfaces, making it straightforward to integrate into existing hydraulic circuits.

Buna-N seals provide reliable fluid compatibility across a broad range of hydraulic applications. With a solenoid rated at 30 watts, the valve is suited for continuous-duty use in systems requiring consistent, repeatable directional shifting. Thousands of configuration variants are available within the DG4V-3 series to accommodate differing circuit requirements.

Typical applications span die casting and foundry equipment, machine tools, presses, marine and offshore installations, primary metal and paper processing, test and simulation equipment, and turbine control systems, including wind, steam, and water turbines.

SKU: 833AN00176A

Supplier Part Number (MPN): 833AN00176A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
60 Series
Dimensions
6.14 in L x 1.88 in W x 3.42 in H
Domestic/Import
Domestic
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Segment Code
C
Series
DG4V-3 60 Series
Solenoid Energizing ID
Solenoid A at Port A End
Spool Position Monitor
With Spool Position Monitor
Spool Type
Spool 35
Spring Arrangement
Spring Offset End to End
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Brenda H on Apr 14, 2025, 6:00 PM
Will this directional control valve work for a marine application, like on a boat?
Answer by: Customer Support on Apr 16, 2025, 7:35 AM
Applications do include marine and offshore installations, so it should be suitable, provided it meets the flow rate and pressure requirements of your hydraulic system. Buna-N seals offer good fluid compatibility for such environments.
