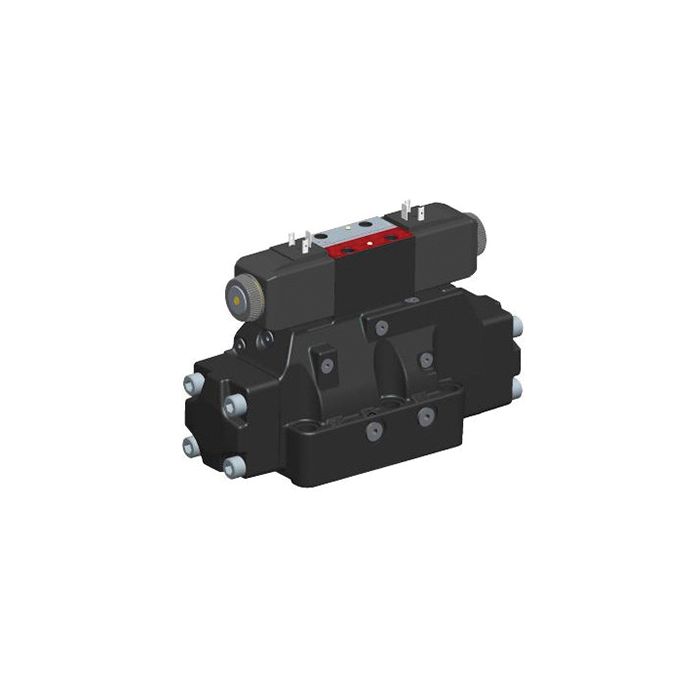

VICKERS DG5V8H1CERMUB10

Ask A Question

Description & Features

Rated for flow up to 700 litres per minute, the Vickers DG5V8H1CERMUB10 is a two-stage directional control valve designed for demanding industrial hydraulic circuits. It supports both three- and four-way directional control configurations and mounts on industry-standard surfaces, making it compatible with a wide range of equipment layouts.

Buna-N seals provide reliable fluid compatibility across typical hydraulic media. The valve is suited for a broad spectrum of industrial environments, including machine tool, press, primary metal, marine and offshore, die casting and foundry, test and simulation equipment, and turbine control systems covering wind, steam, and water applications.

SKU: 836AN00013A

Supplier Part Number (MPN): 836AN00013A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.79 in H
Domestic/Import
Domestic
Ext Pilot Pressure
External
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-8 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 1
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Brett B on Jun 11, 2025, 6:52 AM
Reckon this valve will hold up in a die casting shop environment? We got a lotta heat and grime.
Answer by: Customer Support on Jun 13, 2025, 6:43 AM
Designed for use in die casting and foundry applications, this Vickers valve also suits machine tool, marine, and primary metal environments, indicating robust performance under challenging conditions.
