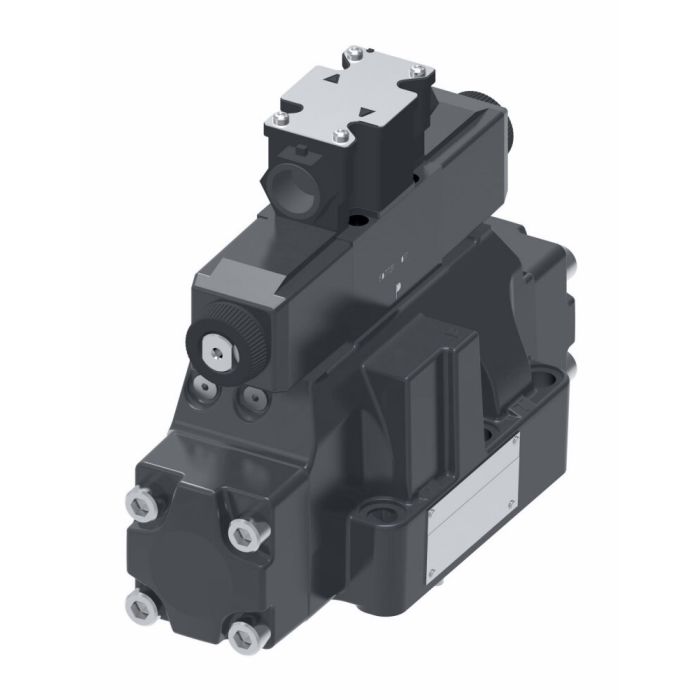

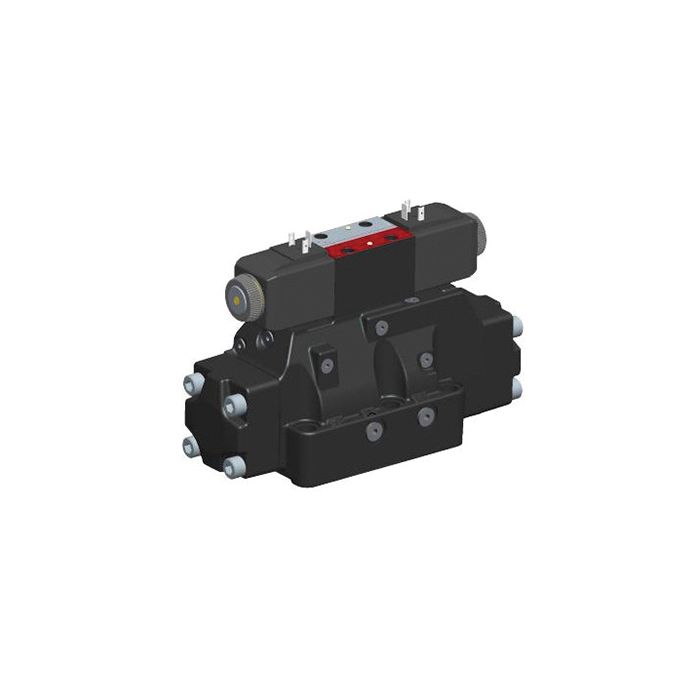

VICKERS DG5V8H0CTRMFWB10

Ask A Question

Description & Features

Designed for high-flow directional control in demanding industrial environments, the Vickers DG5V8H0CTRMFWB10 is a two-stage directional control valve rated for flows up to 700 litres per minute. The Buna-N seal construction supports reliable performance across a broad range of hydraulic fluids and operating conditions.

Configurable in three- or four-way arrangements, this valve mounts on industry-standard surfaces and suits a wide range of applications including die casting and foundry equipment, machine tools, presses, primary metal and paper processing, marine and offshore systems, test and simulation equipment, and turbine control for wind, steam, and water installations. Thousands of model variants are available within the Vickers DG5V-8 series, providing flexibility across diverse system requirements.

SKU: 836AN00025A

Supplier Part Number (MPN): 836AN00025A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.94 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
Internal
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-8 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 0
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Sheila H on Jul 15, 2025, 8:15 PM
Y'all reckon this'll hold up okay in a die casting setup?
Answer by: Customer Support on Jul 17, 2025, 11:37 AM
This valve is designed for demanding industrial environments, including die casting and foundry equipment. It is also suited for machine tools and presses.
