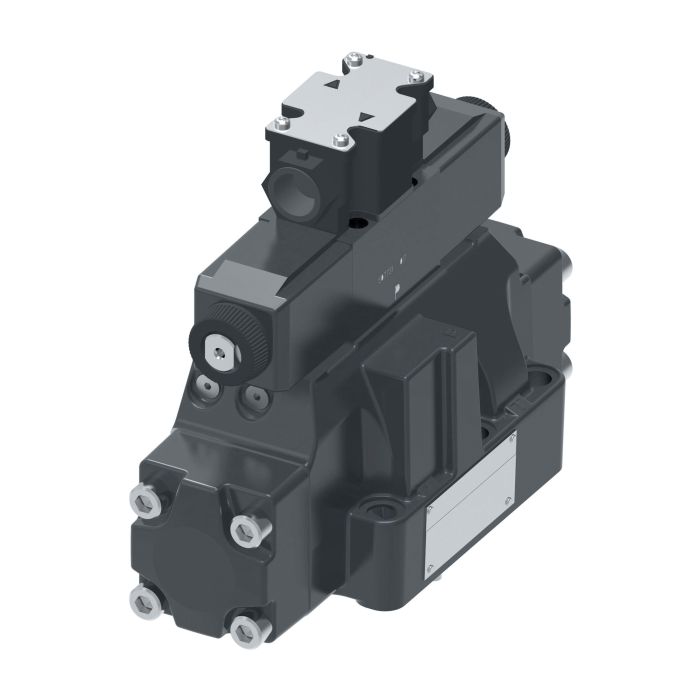

VICKERS DG5V-8-H-0C-T-S-M-FW-B-10

Ask A Question

Description & Features

Rated for flow up to 700 litres per minute, the Vickers DG5V-8-H-0C-T-S-M-FW-B-10 is a two-stage directional control valve designed for demanding industrial hydraulic circuits. It supports three- or four-way directional control and mounts on industry-standard surfaces, simplifying integration into existing hydraulic systems.

Buna-N seals make this valve well suited for a broad range of hydraulic fluids. Designed applications include machine tool, press, primary metal, die casting and foundry, marine and offshore, turbine control (wind, steam, and water), and test equipment and simulation environments, reflecting the versatility of the DG5V-8 platform across heavy industrial sectors.

SKU: 836AN00082A

Supplier Part Number (MPN): 836AN00082A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.94 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
Internal
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-8 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 0
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Travis G on Jan 28, 2026, 10:56 AM
Will this here valve work for pressure control in a hydraulic press?
Answer by: Customer Support on Jan 30, 2026, 6:59 AM
Designed for directional control in demanding industrial hydraulic circuits, this valve supports either three- or four-way operation, which makes it suitable for the sort of precise movements you find in presses and similar equipment.
