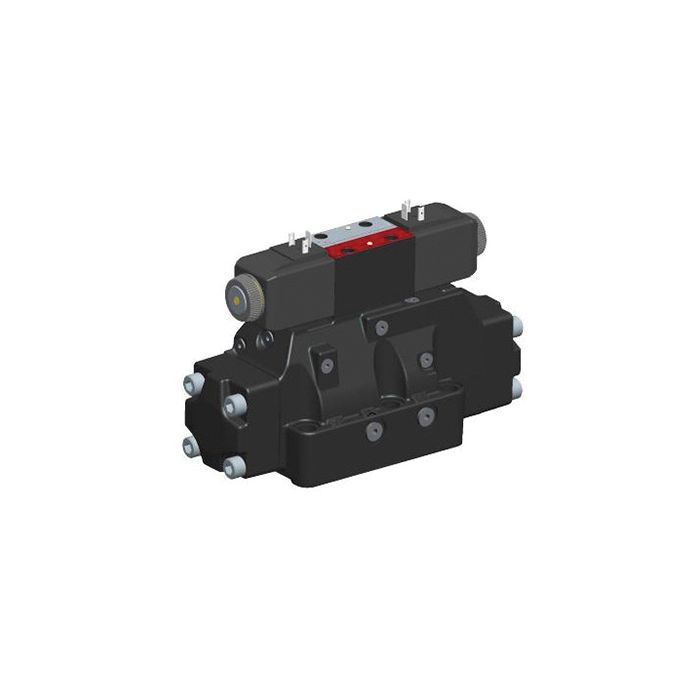

main product photo

VICKERS DG5V8H8CEVMUG10

Ask A Question

Description & Features

A two-stage directional control valve built for high-demand industrial environments, the Vickers DG5V8H8CEVMUG10 supports flow rates up to 700 litres per minute and operates with a 30-watt coil. Configured for three- or four-way directional control, it mounts on industry-standard surfaces and is available across a broad range of model configurations to suit varying circuit requirements.

Fitted with Buna-N seals, this valve is suited to a wide range of hydraulic fluids and operating conditions. Designed applications include die casting and foundry equipment, machine tools, marine and offshore systems, presses, primary metal and paper processing, test and simulation equipment, and turbine control systems covering wind, steam, and water turbines.

SKU: 836AN00106A

Supplier Part Number (MPN): 836AN00106A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.79 in H
Domestic/Import
Domestic
Ext Pilot Pressure
External
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Series
DG5V-8 10 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 8
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (3)

Question by: Carl P on Apr 21, 2025, 1:04 PM
got a press line running pretty hard and we need a directional valve that can keep up with serious flow, this one handle 700 LPM?
Answer by: Customer Support on Apr 23, 2025, 6:58 AM
Yeah, 700 litres per minute is the rated flow capacity on this valve. For a press application running high volume, that puts it well within the range of what this unit is built for. Press systems are actually one of the listed application types for this valve, so it's a known fit for that kind of demanding cycle work.
Question by: Roger E on Nov 30, 2025, 4:12 PM
Can this Vickers valve handle the kind of flow rates we're pushing in our die casting setup? We're talking high volume here.
Answer by: Customer Support on Dec 2, 2025, 6:38 AM
With a flow rate capacity of up to 700 liters per minute, the DG5V8H8CEVMUG10 is well-suited for the demands of die casting and foundry equipment.
Question by: Dean S on Apr 21, 2025, 8:59 AM
got a press that needs a directional valve, is this one a three-way or four-way deal
Answer by: Customer Support on Apr 22, 2025, 1:51 PM
You can set it up for three-way or four-way directional control. It is a two-stage directional control valve meant for higher-demand industrial circuits.
