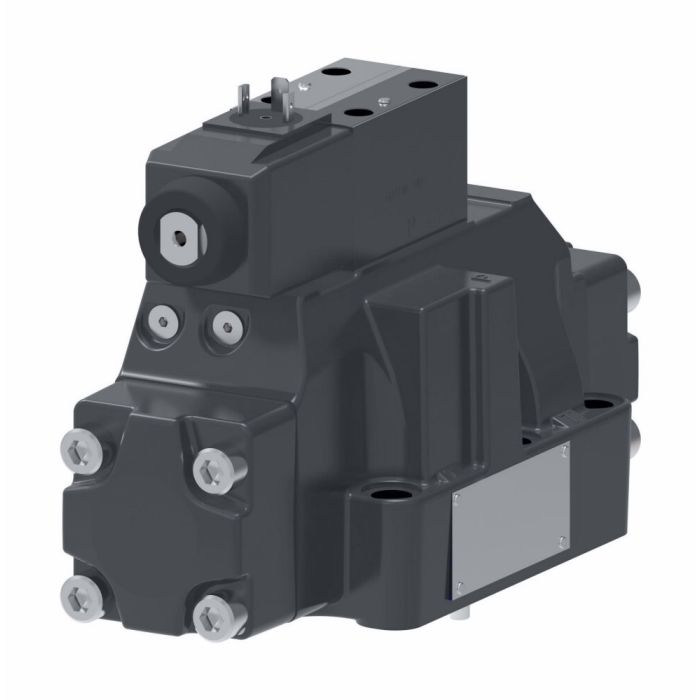

VICKERS DG5V-8-H-2A-T-M-U-G-10

Description & Features

The VICKERS DG5V-8-H-2A-T-M-U-G-10 directional control valve is suitable for applications such as die casting, foundry work, machine tools, and marine/offshore environments. It is also used in presses, primary metal production, paper mills, and test and simulation equipment, as well as turbine control for wind, steam, and water power.

This Vickers directional control valve features three- or four-way directional control and is easily mountable on industry-standard surfaces. It has a flow rate of 700 liters per minute and utilizes Buna-N seals. With a width of 4.67 inches, this valve offers a reliable solution for a variety of industrial applications.

SKU: 836AN00116A

Supplier Part Number (MPN): 836AN00116A

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid, Pilot Operated	Design 10 Series	Dimensions 10.45 in L x 4.67 in W x 7.79 in H	Domestic/Import Domestic	Ext Pilot Pressure Internal	Gauge Port Thread 7/16-20 UNF, SAE Thread	Indicator Light Without Indicator Light	Int Pilot Drain Internal	Manual Override Plain	Media Petroleum Oil	Number of Stages 2	Performance High	Seal Material Buna-N	Series DG5V-8 10 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 2	Spring Arrangement Spring Offset End to End	Surge Suppressor Damper Without Surge Suppressor Damper	Valve Mount Type Subplate/Manifold

Product Questions & Answers (1)

Question by: Roger B on Jun 9, 2025, 9:59 PM

Reckon this'll fit in place of my old DG5V-8-H-2A-T-M-U-G-10 without much fuss?

Answer by: Customer Support on Jun 11, 2025, 6:51 AM

This Vickers directional control valve is made to be easily mounted on industry-standard surfaces, so swapping it out should be pretty straightforward.
