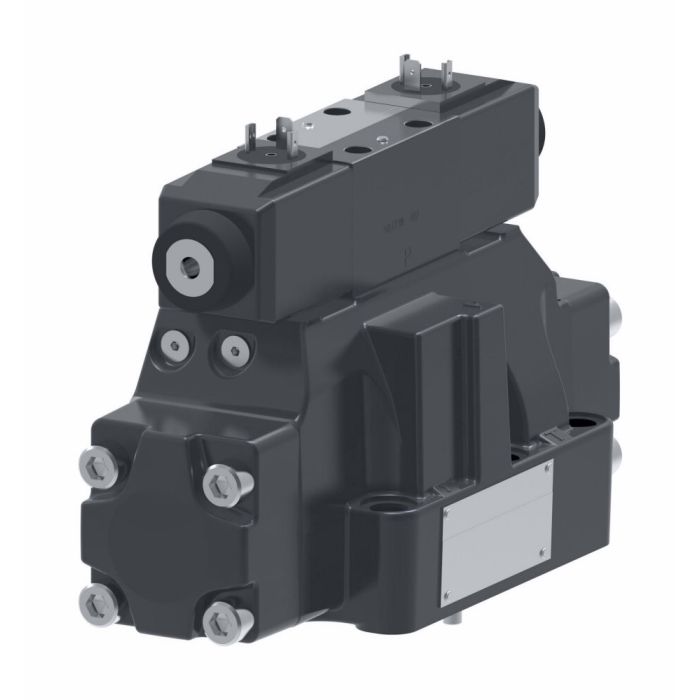

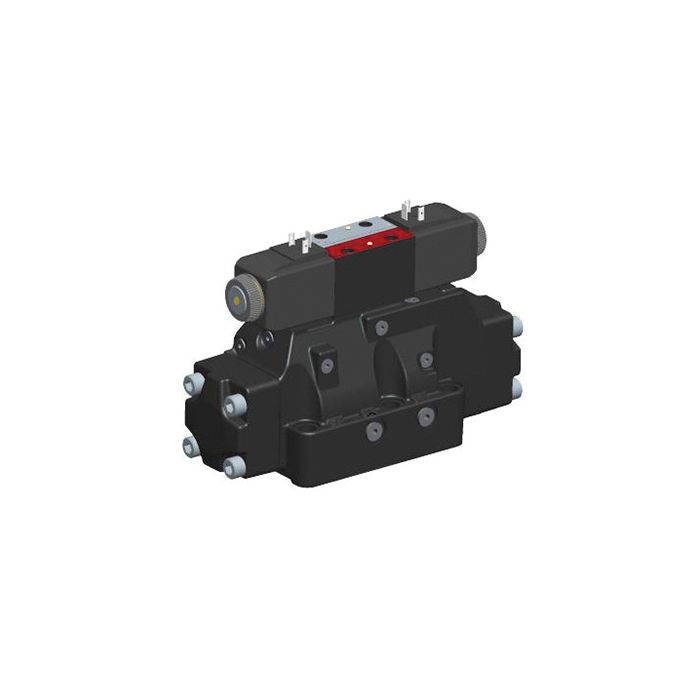

VICKERS DG5V8H8CSVMUH10

Ask A Question

Description & Features

Designed for high-flow directional control in demanding industrial environments, the Vickers DG5V8H8CSVMUH10 is a two-stage, pilot-operated directional control valve capable of handling flow rates up to 700 litres per minute. The valve operates at 30 watts and is sealed with Buna-N material, making it well suited for sustained hydraulic service across a broad range of system pressures and media.

Three- or four-way directional control configurations are supported, and the valve mounts directly to industry-standard surfaces for straightforward integration. Application coverage is broad, spanning die casting and foundry equipment, machine tools, marine and offshore installations, presses, primary metal and paper processing, test and simulation equipment, and turbine control systems, including wind, steam, and water turbine applications.

SKU: 836AN00122A

Supplier Part Number (MPN): 836AN00122A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.79 in H
Domestic/Import
Domestic
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Series
DG5V-8 10 Series
Solenoid Energizing ID
Solenoid A at Port A/Solenoid B at Port B
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 8
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Jimmy T on Jul 21, 2025, 1:59 PM
What kind of applications does this valve work for? I'm thinking about using it in a metal processing plant.
Answer by: Customer Support on Jul 22, 2025, 4:54 PM
Application coverage for the DG5V8H8CSVMUH10 is pretty broad. It includes primary metal processing, along with stuff like die casting, machine tools, marine and offshore setups, presses, paper processing, test equipment, and even turbine control systems.
