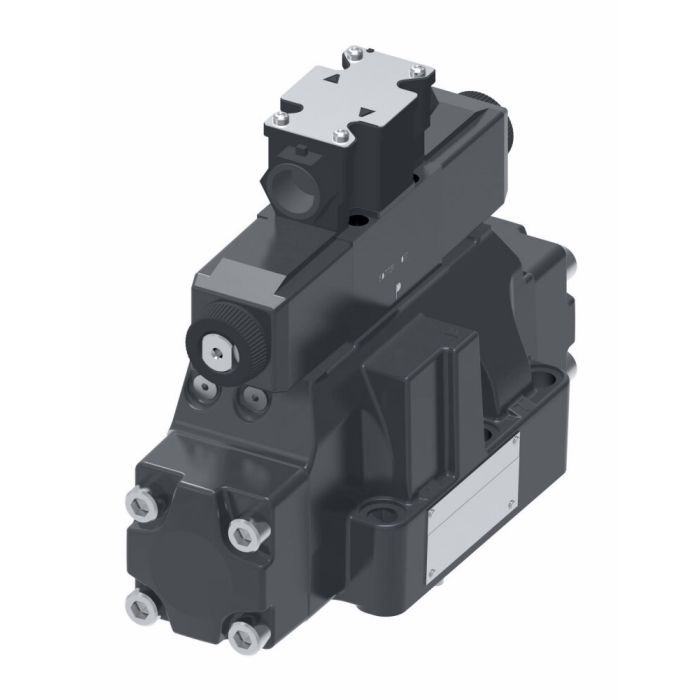

main product photo

VICKERS DG5V8H2CRMFWB10

Ask A Question

Description & Features

Rated for flow up to 700 litres per minute, the Vickers DG5V8H2CRMFWB10 is a two-stage directional control valve designed for demanding industrial hydraulic systems. It supports both three- and four-way directional control configurations and mounts on industry-standard surfaces, making it compatible across a wide range of installations and machine interfaces.

Buna-N seals provide reliable performance across a broad range of hydraulic fluids. The valve is suited for use in die casting and foundry environments, machine tool applications, marine and offshore installations, press systems, primary metal and paper processing, test and simulation equipment, and turbine control systems covering wind, steam, and water turbines.

SKU: 836AN00249A

Supplier Part Number (MPN): 836AN00249A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
10.45 in L x 4.67 in W x 7.94 in H
Domestic/Import
Domestic
Electrical Connection
1/2 in NPT Housing Flying Leads
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
Without Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Segment Code
C
Series
DG5V-8 10 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Brenda B on May 1, 2025, 7:45 AM
Can this handle nasty environments like a foundry without conking out?
Answer by: Customer Support on May 3, 2025, 6:45 AM
It certainly can. Vickers designed this valve for demanding industrial hydraulic systems, and the applications list specifically mentions die casting and foundry environments. It's also good for marine/offshore, metal processing, and turbine control so it should hold up just fine.
