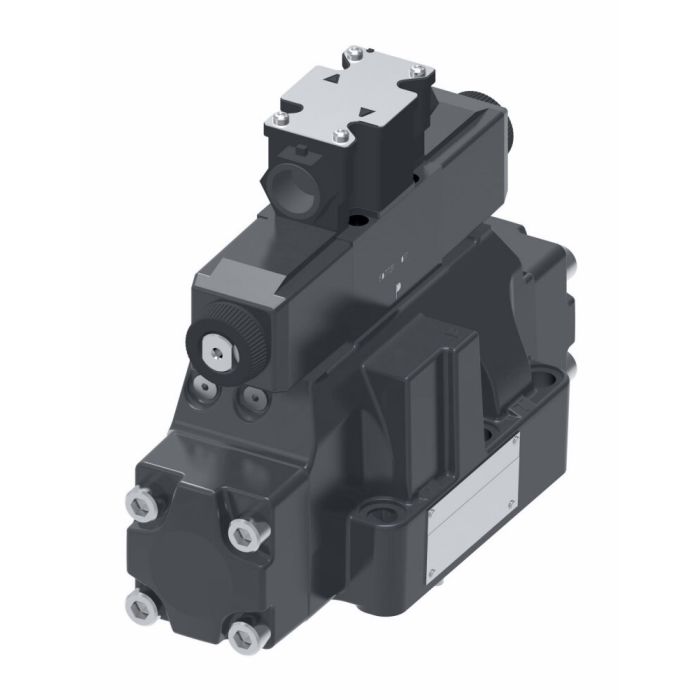

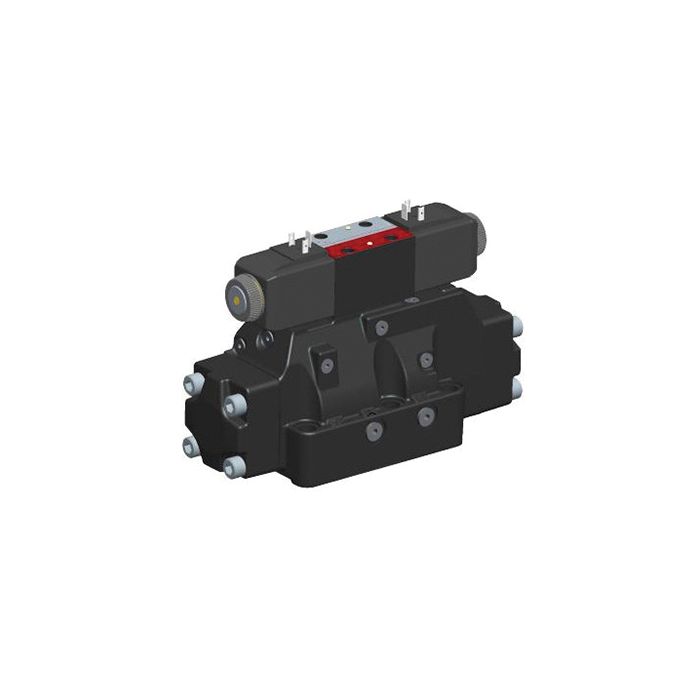

VICKERS-DG5V-8-H-2C-3-M-FTWL-B-10

Ask A Question

Description & Features

This Vickers DG5V-8-H-2C-3-M-FTWL-B-10 directional control valve is designed for die casting and foundry applications, as well as machine tools, marine and offshore environments, presses, primary metal, and paper industries. It is also suitable for test equipment and simulation, and turbine control (wind, steam, and water) applications.

This Vickers valve provides three- or four-way directional control and is easily mountable on industry-standard surfaces. Designed with Buna-N seals, this model offers a flow rate of 700 liters per minute and a width of 4.67 inches.

SKU: 836AN00610A

Supplier Part Number (MPN): 836AN00610A

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid, Pilot Operated
Design
10 Series
Dimensions
16.37 in L x 4.67 in W x 9.51 in H
Domestic/Import
Domestic
Electrical Connection
Flying Leads Wired Terminal Block, 1/2 in NPT Thread Wiring Housing
Ext Pilot Pressure
Internal
Gauge Port Thread
7/16-20 UNF, SAE Thread
Indicator Light
With Indicator Light
Int Pilot Drain
External
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
2
Performance
High
Seal Material
Buna-N
Series
DG5V-8 10 Series
Spool Control
Stroke/Pilot Choke Adjustment
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 2
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Steve R on Mar 9, 2026, 12:30 PM
What kind of stuff is this valve really good for? Like, what all can I use it on?
Answer by: Customer Support on Mar 10, 2026, 5:31 PM
Application-wise, it's meant for die casting, foundries, machine tools, marine and offshore stuff, presses, primary metal, paper stuff, test equipment, simulation, and even turbine control for wind, steam, and water. So, a pretty wide range.
