CVCS-40-C-W-125-20

Description & Features

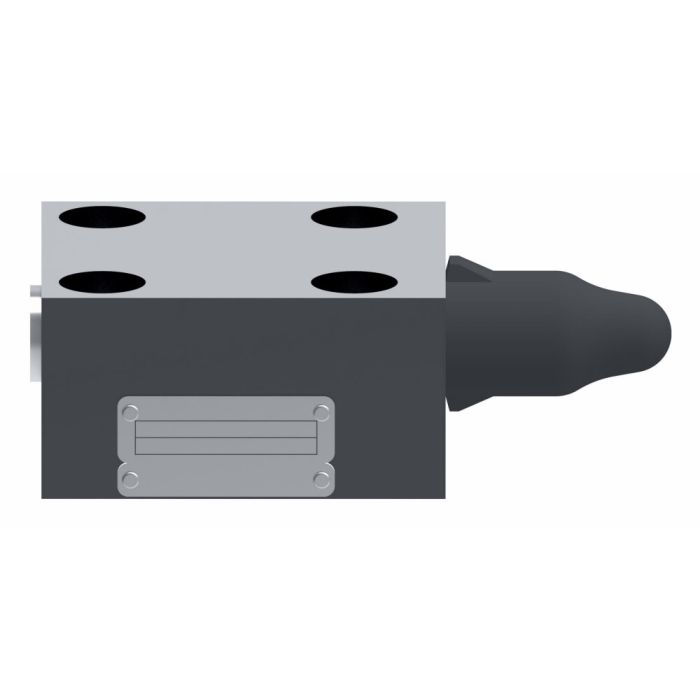

The Vickers by Danfoss / Eaton CVCS-40-C-W-125-20 slip-in cartridge valve cover is designed for efficient and dependable operation. This valve cover is part of the IV Slip-in Valves series and features best-in-class design for faster response time.

Constructed with a Buna-N seal material, the CVCS-40 valve cover is suitable for use in presses, plastics molding machines, die casting machines, shears and balers, machine tools and metal forming machinery, steel mill machinery, and other primary metal processing equipment, as well as mobile vehicle and marine applications. It offers a flow rate of 1700 liters per minute and has a product width of 5.08 inches.

SKU: 846AN00069A

Supplier Part Number (MPN): 846AN00069A

Specifications

Brand Vickers by Danfoss	Actuator Type Solenoid	Adjustment With Adjustment	Adjustment Type Wrench with Hex Locknut	Body Material Iron	Configuration Normally Closed	Cover Type Relief	Design 20 Series	Dimensions 7.09 in L x 5.08 in W x 3.22 in H	Domestic/Import Import	Enclosure Type IP65	Insert Ratio 1:1	Insert Type Relief	Interface Without Interface	Language English	Leakage Standard	Media Petroleum Oil	Nominal Size NG 40	Pilot Port Orientation ISO	Port Type SAE	Seal Material Buna-N	Series CVCS-40 20 Series	Softgoods Material Nitrile	Spool Position Sensor Without Spool Position Sensor	Valvistor Type Without Valvistor

Product Questions & Answers (1)

Question by: Frank J on Jan 20, 2026, 5:31 PM

Is this cover gonna fit on a standard size 40 valve?

Answer by: Customer Support on Jan 22, 2026, 6:26 AM

This CVCS-40-C-W-125-20 slip-in cartridge valve cover is designed for a size 40 valve within the IV Slip-in Valves series.
