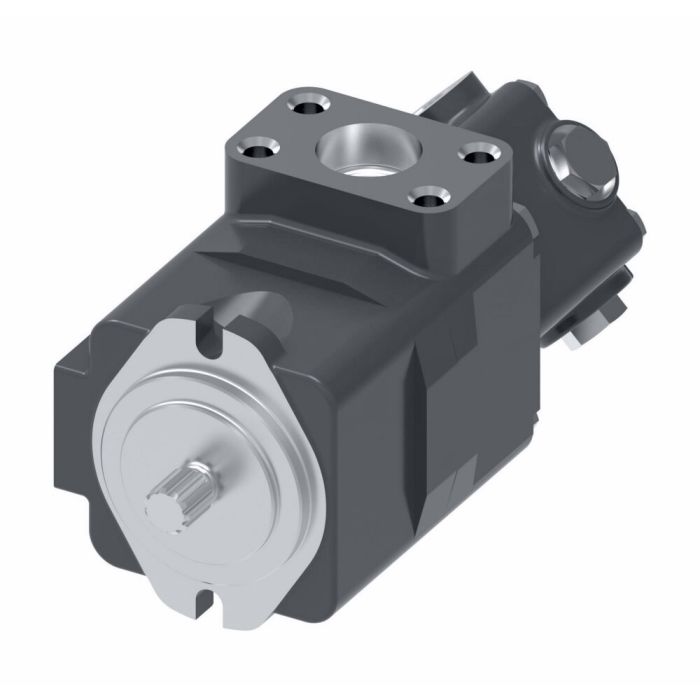

main product photo

Vickers V2010 1F8S1S 1BA12

Ask A Question

Description & Features

Designed for power steering systems, small industrial units, and light press applications, the Vickers V2010 1F8S1S 1BA12 is a double-section vane pump built around a pressure-balanced, modular 12-vane configuration. This design minimizes noise and reduces flow pulsation, making it well suited to hydraulic circuits where smooth, consistent output matters.

Constructed from cast iron with Buna-N seals, the pump delivers a flow rate of approximately 68.2 litres per minute and belongs to Vickers' V2010 series. The modular architecture supports a wide range of available displacements, giving system designers flexibility when matching pump output to application requirements.

SKU: 850043-G

Supplier Part Number (MPN): 850043-G

Specifications

Brand
Vickers by Danfoss
Cartridge Type
12 Design
Design Code
12
Dimensions
10.7 in L x 6.87 in W x 5 in H
Displacement
1.62 cu-in Shaft, 0.2 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
8 gpm Shaft, 1 gpm Cover
Housing Material
Iron
Inlet Port Type
4 Bolt Flanged
Maximum Operating Pressure
2500 psi
Mounting Type
2-Bolt Flanged SAE B
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Rotation Direction
Clockwise (Right Hand)
Seal Material
Buna-N
Series
V2010 Series
Speed Rating
2800 rpm Shaft, 3000 rpm Cover
Vane Type
Balanced

Product Questions & Answers (1)

Question by: Lee S on Jun 9, 2025, 6:38 PM
Would this pump work okay in a power steering setup on an old pickup truck?
Answer by: Customer Support on Jun 10, 2025, 7:36 PM
This V2010 series pump is designed for power steering applications, along with small industrial units and light press applications. Just make sure the flow rate and other specs line up with what your truck needs.
