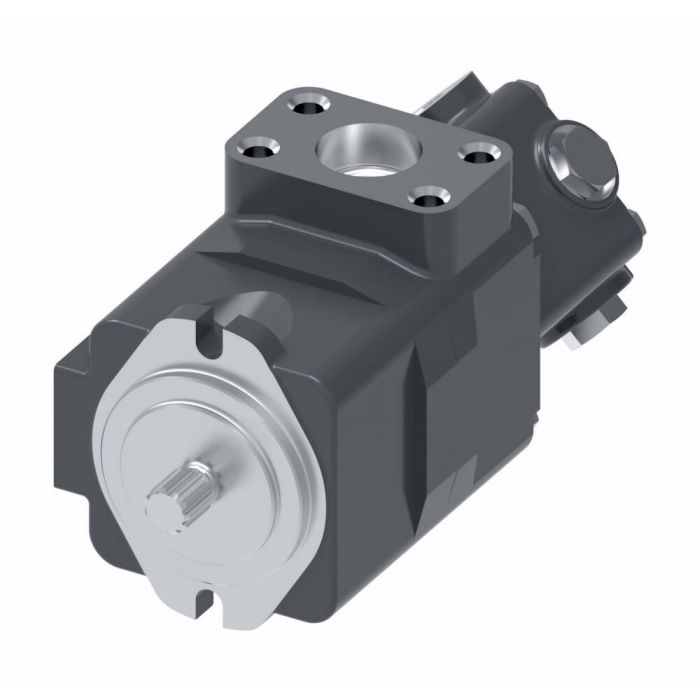

Vickers V2010 1F8S3S 1CC12

Ask A Question

Description & Features

The Vickers by Danfoss V10 and V20 Series Vane Pumps are engineered for precision and reliability. With a pressure-balanced modular 12-vane design these pumps are tailored for various industrial applications including power steering and small press units.

Constructed from durable cast iron and featuring a Buna-N seal material the Vickers V2010 1F8S3S 1CC12 reduces noise and flow pulsation. The wide range of available displacements makes it adaptable to diverse requirements.

The V2010 Series from Danfoss is a non-adjustable machine mountable solution ensuring robust performance without the need for end adjustments or additional calibration. This pump is classified under ECCN: EAR99.

MPN: EAR99

Supplier Part Number: 850047-3

Specifications

Cartridge Type
12 Design
Design Code
12
Dimensions
10.7 in L x 6.87 in W x 5 in H
Displacement
1.62 cu-in Shaft, 0.6 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
8 gpm Shaft, 3 gpm Cover
Housing Material
Iron
Inlet Port Type
4 Bolt Flanged
Maximum Operating Pressure
2500 psi
Mounting Type
2-Bolt Flanged
nmfc
77.50
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Rotation Direction
Clockwise (Right Hand)
Seal Material
Buna-N
Segment Code
A
Series
V2010 Series
Speed Rating
2800 rpm Shaft, 3000 rpm Cover
Vane Type
Balanced

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Stan H on Aug 28, 2025, 3:12 PM
what kind of seal does this pump use, and is cast iron the actual body material or just part of it?
Answer by: Customer Support on Aug 29, 2025, 7:26 PM
Cast iron is the full construction material for the pump body, and the seals are Buna-N. That combination holds up well in typical industrial hydraulic environments where you've got petroleum-based fluid running through the system. Buna-N is a solid all-around seal choice for standard hydraulic oil applications.
