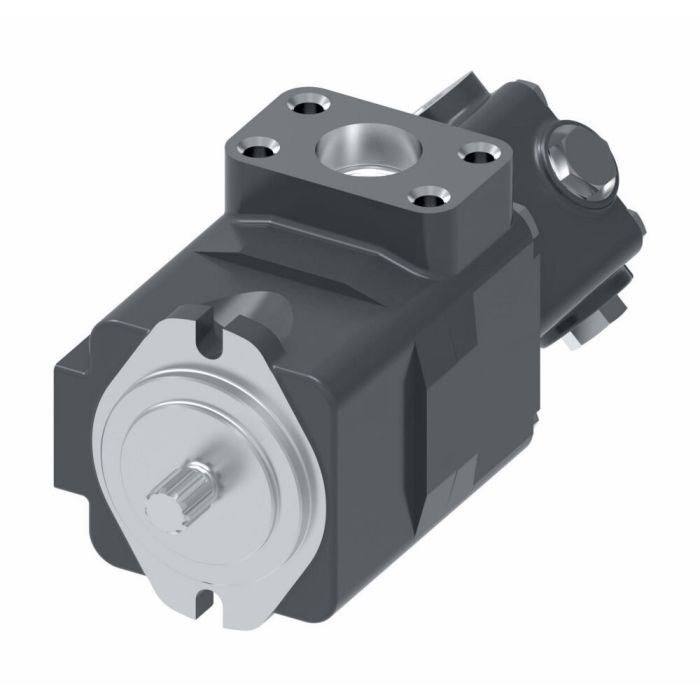

main product photo

Vickers V2010 1F9S7S 11AA12

Ask A Question

Description & Features

Designed for power steering and industrial applications such as small press units, the Vickers V2010 1F9S7S 11AA12 is a cast iron vane pump built on the proven V2010 series platform. Its pressure-balanced, modular 12-vane design helps reduce noise and flow pulsation, making it well suited for systems where smooth, consistent output matters. A flow rate of approximately 76.28 litres per minute supports a broad range of light-to-medium duty hydraulic circuits.

As part of the Vickers by Danfoss/Eaton V10 and V20 series, this pump is available in a wide range of displacements, offering flexibility when matching pump output to circuit requirements. The cast iron housing provides solid construction for demanding industrial environments.

SKU: 850070-1

Supplier Part Number (MPN): 850070-1

Alternate Part Numbers: FMC3643764-001

Specifications

Brand
Vickers by Danfoss
Cartridge Type
12 Design
Dimensions
10.46 in L x 6.87 in W x 5 in H
Displacement
1.81 cu-in Shaft, 1.39 cu-in Cover
Drive Shaft Type
13 Teeth
Flow Rate
9 gpm Shaft, 7 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi Shaft, 2000 psi Cover
Mounting Type
2-Bolt Flanged SAE B
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Outletcover Port Orientation
Outlet 2: 135 deg CCW From Inlet Port, Outlet 1: Opposite From Inlet Port
Rotation Direction
Clockwise (Right Hand)
Seal Material
Buna-N
Series
V2010 Series
Shaft Pitch
16/32
Vane Type
Balanced

Product Questions & Answers (1)

Question by: Gene A on Jun 16, 2025, 12:34 PM
What kind of hydraulic fluid should I be running in this V2010 pump?
Answer by: Customer Support on Jun 17, 2025, 6:04 PM
Since this is part of the Vickers V10 and V20 series, it's made to handle a good range of hydraulic fluids, but you'll want to make sure whatever you use is compatible with the cast iron housing material. Check the fluid's specs to be sure.
