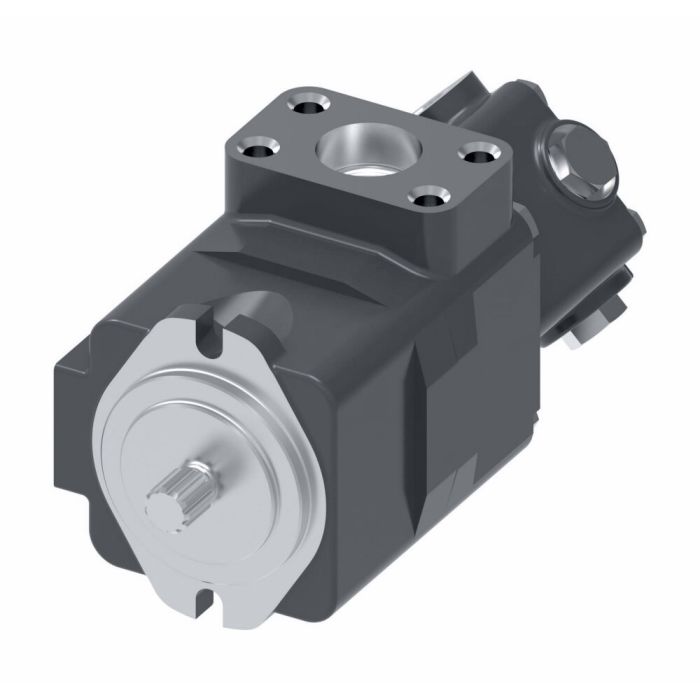

Vickers V2010 1F11S6S 11CB12L

Ask A Question

Description & Features

Designed for power steering systems and compact industrial hydraulic applications, including small press units, the Vickers V2010 1F11S6S 11CB12L is a cast iron vane pump built around a pressure-balanced, modular 12-vane configuration. This design helps reduce noise and flow pulsation, making it well suited to applications where smooth, consistent output is a priority.

With a flow rate of approximately 88.3 litres per minute and Buna-N seals as standard, the pump is compatible with a wide range of hydraulic fluids commonly used in industrial circuits. The V2010 series supports a broad selection of available displacements, giving engineers flexibility when sizing the unit for a specific system.

SKU: 850083-S

Supplier Part Number (MPN): 850083-S

Specifications

Brand
Vickers by Danfoss
Cartridge Type
12 Design
Dimensions
10.46 in L x 6.87 in W x 5 in H
Displacement
2.22 cu-in Shaft, 1.19 cu-in Cover
Drive Shaft Type
13 Teeth
Flow Rate
11 gpm Shaft, 6 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi Shaft, 2200 psi Cover
Mounting Type
2-Bolt Flanged SAE B
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Outletcover Port Orientation
Outlet 2: 45 deg CCW From Inlet Port, Outlet 1: Inline with Inlet Port
Rotation Direction
Counter Clockwise (Left Hand)
Seal Material
Buna-N
Series
V2010 Series
Shaft Pitch
16/32
Speed Rating
2500 rpm Shaft, 3000 rpm Cover
Vane Type
Balanced

Product Questions & Answers (1)

Question by: Shawn W on Jul 19, 2025, 5:52 PM
Can this vane pump handle the demands of a power steering system without generating excessive noise?
Answer by: Customer Support on Jul 20, 2025, 8:18 PM
Because it features a pressure-balanced, modular 12-vane design, this Vickers pump is known for reducing noise and flow pulsation, which makes it a good choice for power steering and other applications where consistent output is important.
