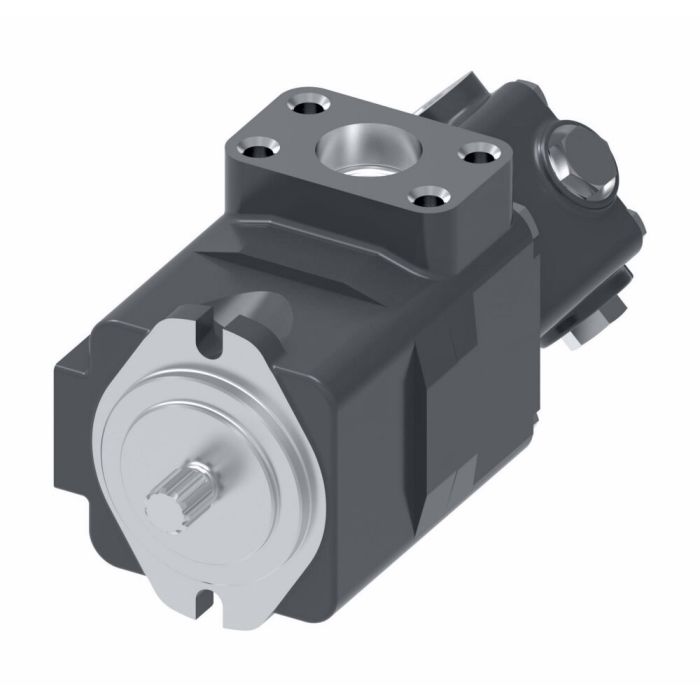

VICKERS V2010 1F13S5S

Description & Features

The VICKERS V2010 1F13S5S vane pump is designed for power steering, industrial small units, and small press applications. Its pressure-balanced, modular 12-vane design reduces noise and flow pulsation, contributing to smoother and more efficient.

Constructed from durable cast iron and sealed with Buna-N, this Vickers vane pump offers a wide range of available displacements and a flow rate of 99.77382144 liters per minute. It has a product width of 6.87 inches.

SKU: 850108-3

Supplier Part Number (MPN): 850108-3

Specifications

Brand Vickers by Danfoss	Cartridge Type 12 Design	Dimensions 10.35 in L x 6.87 in W x 5 in H	Displacement 2.59 cu-in Shaft, 1 cu-in Cover	Drive Shaft Type 13 Teeth	Flow Rate 13 gpm Shaft, 5 gpm Cover	Housing Material Iron	Maximum Operating Pressure 2200 psi Shaft, 2500 psi Cover	Mounting Type 2-Bolt Flanged SAE B	Outlet Size 1-1/16-12, 3/4-16	Outlet Type Threaded	Outletcover Port Orientation Outlet 2: 45 deg CW From Inlet Port, Outlet 1: Inline with Inlet Port	Rotation Direction Clockwise (Right Hand)	Seal Material Buna-N	Series V2010 Series	Shaft Pitch 16/32	Speed Rating 2400 rpm Shaft, 3000 rpm Cover	Vane Type Balanced

Product Questions & Answers (1)

Question by: Brett G on Jan 6, 2026, 11:47 AM

I'm looking for a replacement pump for my power steering system. Will this Vickers model fit the bill?

Answer by: Customer Support on Jan 8, 2026, 6:16 AM

This V2010 vane pump is indeed suitable for power steering applications, as well as industrial small units and small press setups.
