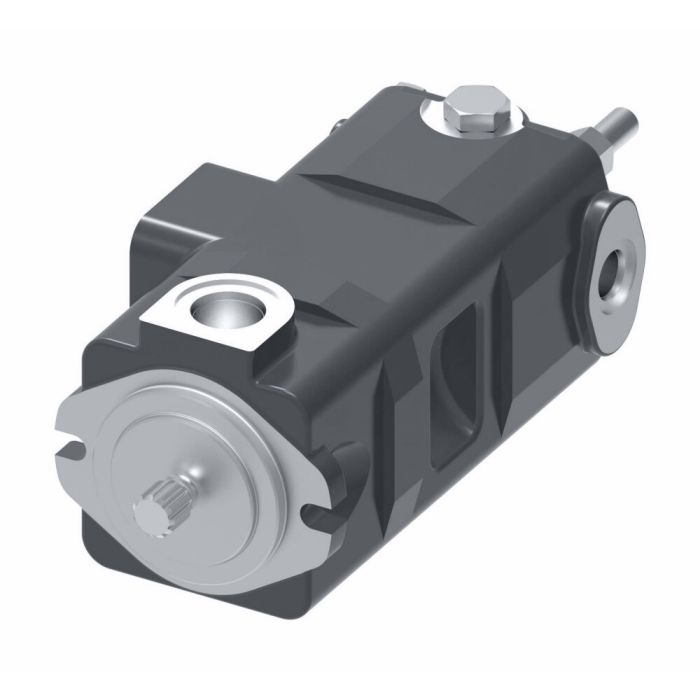

Vickers V2020 1F11S8S 1CC30

Ask A Question

Description & Features

Designed for power steering systems, small industrial units, and light press applications, the Vickers V2020 1F11S8S 1CC30 is a double-section vane pump built around a pressure-balanced, modular 12-vane configuration. This design reduces noise and flow pulsation, making it well suited to installations where consistent, low-vibration output is a priority.

Constructed from cast iron, the pump delivers a flow rate of approximately 88.28 litres per minute and belongs to the V2020 series, a platform known for its wide range of available displacements. The modular architecture allows for flexible configuration across a variety of small-to-medium hydraulic circuits.

SKU: 850341-3

Supplier Part Number (MPN): 850341-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
30 Design
Dimensions
11.35 in L x 6.88 in W x 5.32 in H
Displacement
2.22 cu-in Shaft, 1.62 cu-in Cover
Drive Shaft Type
Straight Keyed
Flow Rate
11 gpm Shaft, 8 gpm Cover
Housing Material
Iron
Maximum Operating Pressure
2500 psi
Mounting Type
Flanged
nmfc
77.50
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Rotation Direction
In-Line with Inlet
Seal Material
Buna-N
Segment Code
A
Series
V2020 Series
Speed Rating
2500 rpm Shaft, 2800 rpm Cover
Vane Type
Balanced

Product Questions & Answers (1)

Question by: Rhonda R on Oct 3, 2025, 7:21 AM
Will this thing hold up okay if I'm running it pretty much all day long?
Answer by: Customer Support on Oct 4, 2025, 6:31 PM
This Vickers V2020 series pump is built with a cast iron housing, which helps with durability for demanding applications.
