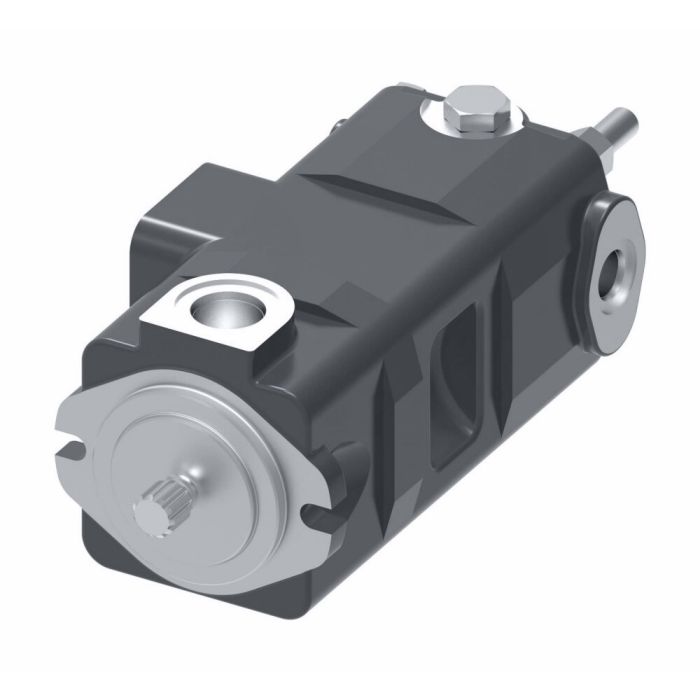

main product photo

Vickers V2020 1F13S8S 1CC30

Ask A Question

Description & Features

Designed for power steering systems, small industrial units, and light press applications, the Vickers V2020 1F13S8S 1CC30 is a dual-section vane pump built on the proven V2020 series platform. Cast iron construction provides durability in demanding hydraulic circuits, while the pressure-balanced, modular 12-vane design helps reduce noise and minimize flow pulsation during continuous use.

With a flow rate of approximately 99.77 litres per minute, this pump suits applications requiring reliable, consistent output across a wide range of displacements. The modular configuration supports flexible integration into compact hydraulic power units where space and weight are considerations.

SKU: 850367-3

Supplier Part Number (MPN): 850367-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
30 Design
Design Code
30
Dimensions
11.48 in L x 6.88 in W x 5.32 in H
Displacement
2.59 cu-in Shaft, 1.62 cu-in Cover
Drive Shaft Type
Square Keyed
Flow Rate
13 gpm Shaft, 8 gpm Cover
Housing Material
Iron
Inlet Port Type
4 Bolt Flanged
Maximum Operating Pressure
2200 psi Shaft, 2500 psi Cover
Mounting Type
2-Bolt Flanged SAE B
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Rotation Direction
Clockwise (Right Hand)
Seal Material
Buna-N
Series
V2020 Series
Speed Rating
2400 rpm Shaft, 2800 rpm Cover
Vane Type
Balanced

Product Questions & Answers (1)

Question by: Earl C on May 3, 2025, 10:32 AM
Can this handle running pretty much non-stop in a power steering setup?
Answer by: Customer Support on May 5, 2025, 9:28 AM
Cast iron construction ensures durability, even in demanding hydraulic circuits. The pressure-balanced design also helps minimize wear and tear during continuous use, so it should hold up well.
