Vickers V2020 1F7S6S 11CC30

Description & Features

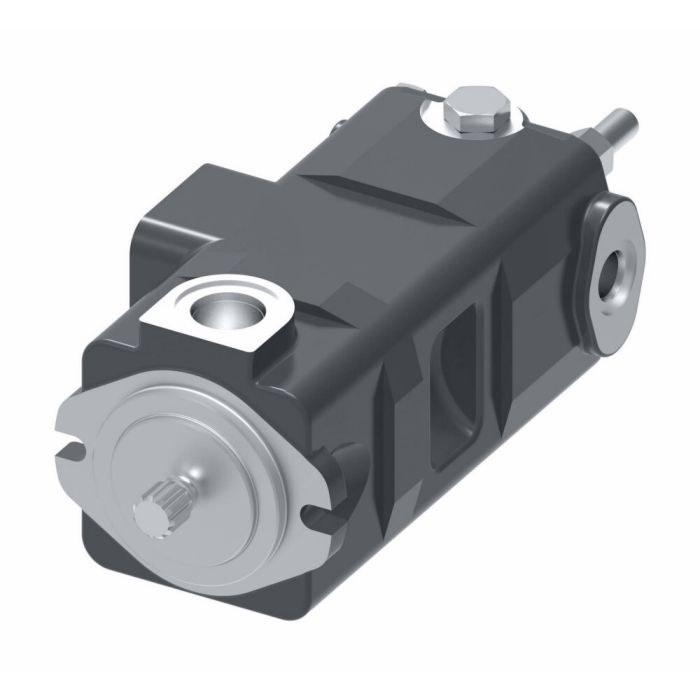

Designed for power steering systems, small industrial units, and light press applications, the Vickers V2020 1F7S6S 11CC30 is a double-section vane pump built around a pressure-balanced, modular 12-vane configuration. This design reduces noise and minimizes flow pulsation, making it well-suited to hydraulic circuits where smooth, consistent output is a priority.

Constructed from cast iron, the pump delivers a flow rate of approximately 64.4 litres per minute and is available as part of the broader V2020 series, which offers a wide range of displacement options to match varying system demands. The V2020 series is a Vickers by Danfoss/Eaton product line with an established presence in mobile and industrial hydraulic applications.

SKU: 850373-3

Supplier Part Number (MPN): 850373-3

Specifications

Brand Vickers by Danfoss	Cartridge Type 30 Design	Design Code 30	Dimensions 10.46 in L x 6.88 in W x 5.32 in H	Displacement 1.39 cu-in Shaft, 1.19 cu-in Cover	Drive Shaft Type 13 Teeth	Flow Rate 7 gpm Shaft, 6 gpm Cover	Housing Material Iron	Maximum Operating Pressure 2500 psi	Mounting Type 2-Bolt Flanged SAE B	Outlet Size 1-1/16-12, 3/4-16	Outlet Type Threaded	Outletcover Port Orientation Outlet 2: Inline with Inlet Port, Outlet 1: Inline with Inlet Port	Rotation Direction Clockwise (Right Hand)	Seal Material Buna-N	Seal Type Standard	Segment Code B	Series V2020 Series	Vane Type Balanced

Product Questions & Answers (1)

Question by: Wes B on Dec 29, 2025, 3:23 PM

So, is this cast iron gonna hold up okay in a little bit tougher environment?

Answer by: Customer Support on Dec 31, 2025, 10:34 AM

Yeah, the cast iron construction should offer good durability for demanding applications.
