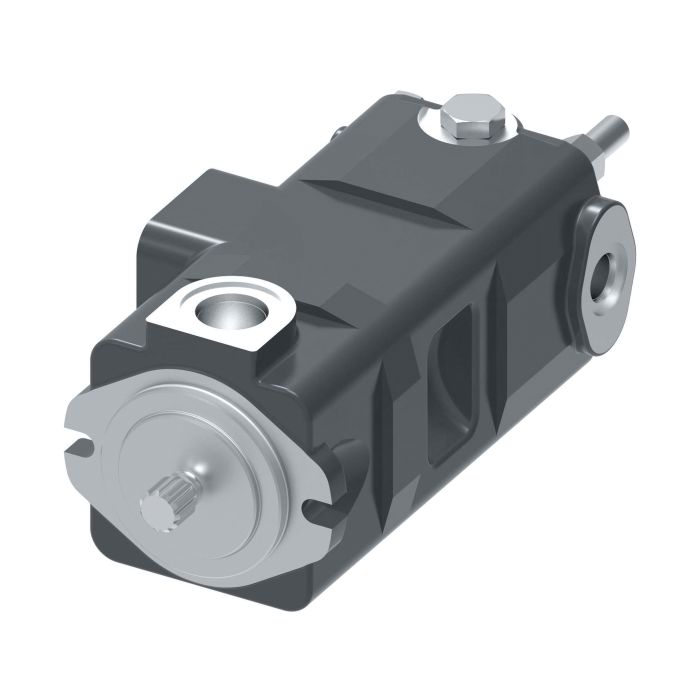

Vickers V2020 6F9S7S 11CC30 064

Ask A Question

Description & Features

The Vickers V2020 series vane pump is engineered for precision and reliability in power steering and industrial applications. Its pressure-balanced, modular 12-vane design minimizes noise and flow pulsation, making it ideal for small units and presses. Crafted from durable cast iron, this pump ensures long-lasting performance under demanding conditions. The wide range of available displacements supports versatile operational requirements, while the Buna-N seals contribute to its resilience against various fluids.

With a product width of 6.88 inches, the Vickers V2020 6F9S7S 11CC30 064 offers compatibility with a range of systems, providing dependable service in numerous industrial settings. As part of the well-regarded Vickers brand by Eaton, this vane pump upholds a legacy of quality and innovation. Its robust construction and thoughtful design features make it a reliable choice for enhancing hydraulic system efficiency.

SKU: 850401-3

Supplier Part Number (MPN): 850401-3

Specifications

Brand
Vickers by Danfoss
Cartridge Type
30 Design
Dimensions
10.655 in L x 6.88 in W x 5.32 in H
Displacement
1.81 cu-in Shaft, 1.39 cu-in Cover
Drive Shaft Type
13 Teeth
Flow Rate
9 gpm Shaft, 7 gpm Cover
Housing Material
Iron
Inlet Port Type
4 Bolt Flanged
Maximum Operating Pressure
2500 psi
Mounting Type
2-Bolt Flanged SAE A
Outlet Size
1-1/16-12, 3/4-16
Outlet Type
Threaded
Rotation Direction
Clockwise (Right Hand)
Seal Material
Buna-N
Series
V2020 Series
Shaft Pitch
16/32
Special Feature Suffix
Ring/Rotor and Vanes Modified For 3000 psi SQ Cut Sealing Ring at Pressure Plate Double
Speed Rating
2800 rpm Shaft, 3000 rpm Cover
Vane Type
Balanced

Product Questions & Answers (1)

Question by: Eddie M on Mar 17, 2026, 7:01 PM
If I'm retrofitting an old unit, what's the width on this V2020 pump?
Answer by: Customer Support on Mar 19, 2026, 5:23 PM
Dimensionally, this pump measures 6.88 inches wide.
